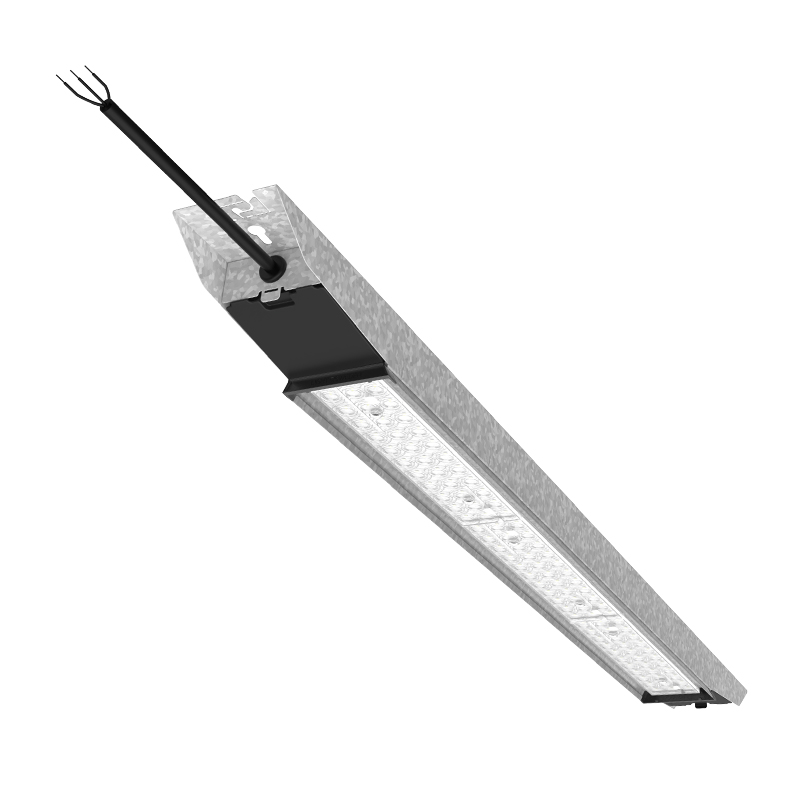

Industrial Linear LED Light L16

Features:

  • Patented design
  • System efficiency 150lm/W
  • Meanwell/Philips/Sosen Driver for option, PF>0.95
  • Lumileds/Epistar 3030 SMD LED, CRI >70/80
  • Economy type: Iron plate Housing; Regular type: ADC12 aluminum die-casting housing.
  • Avaliable with 30°/60°/90° beam angle
  • 3000L/4000K/5000K/5700K6500K CCT
  • Long life span, L70>50,000 Hours

Description

TUBU’s L16 LED Industrial Linear Light is a lighting machine developed for industry but also an excellent solution for compartments and grocery stores with high demands on energy efficiency and lighting comfort.

The combination of a very flexible installation, energy efficiency of up to 150lm/W and a replaceable light engine makes the L16 hard to beat.

Robust 3030 diodes and industrial drivers ensure maintenance-free light for a long time to come and the day it is time to update the lighting this is made both easier and with significantly lower cost and environmental impact thanks to the replaceable light engine.

Tech Specs

Product Code

TBL16-75W

TBL16-90W

TBL16-120W

Power

75W

90W

120W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.35A@220VAC

0.45A@220VAC

0.6A@220VAC

PF

0.90@220VACV/Dali

Dimming Option

Dail

CCT

3000K/4000K/5000K/6000K

Ra>80

Luminous Flux

11250Lm±5%

13500Lm±5%

18000Lm±5%

Ra>80

Efficiency

150Lm/W±5%

LED Brand

2835/3030

Beam Angle

30°60°90°

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40℃ L70>54000Hours

IP Class

IP23

IK Class

IK08

Certificate

CE, RoHS

Lamp Body Color

Painted(Ral 9006) Galvanised steel; LED Body: Extruded Aluminium

Product Size (mm)

1230*94*66

1800*94*66

1800*94*66

Packing Size (mm)

1270*241*260

600*163*168

1860*241*185

Quantity/carton

6PCS

4PCS

4PCS

Gross weight (kg) ±0.3

19.88

19.84

19.84

Installation mode

Surface Mount/Suspension Mount

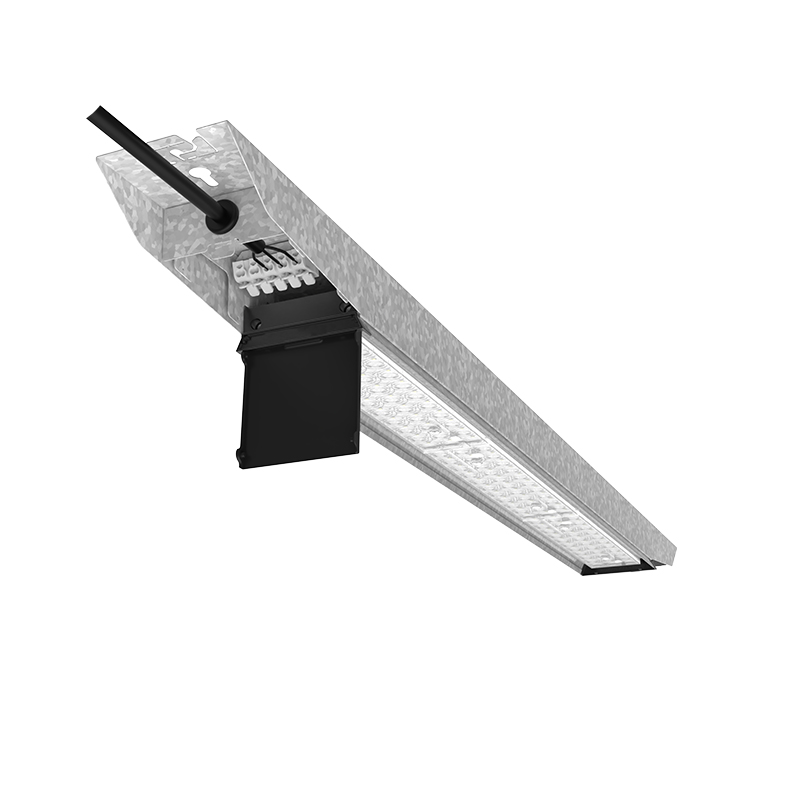

Economic Versions
Industrial Linear LED Light

Use cost-effective and durable materials, reduce maintenance needs, and employ easy-to-replace systems to increase sustainability. System efficiency is  150lm/W.

Replaceable Lighting Engines

The entire Lighting Engine can be easily removed and replaced manually. By quickly replacing the Lighting Engine, you can extend the service life of the entire lamp and reduce the cost of use.

Easy Wiring

Quick wiring ports with snap mechanism for safe and intuitive wiring. Reduce labor installation costs and provide more convenience. The standard configuration is a three-phase through-wire with a size of 7x2.5mm².

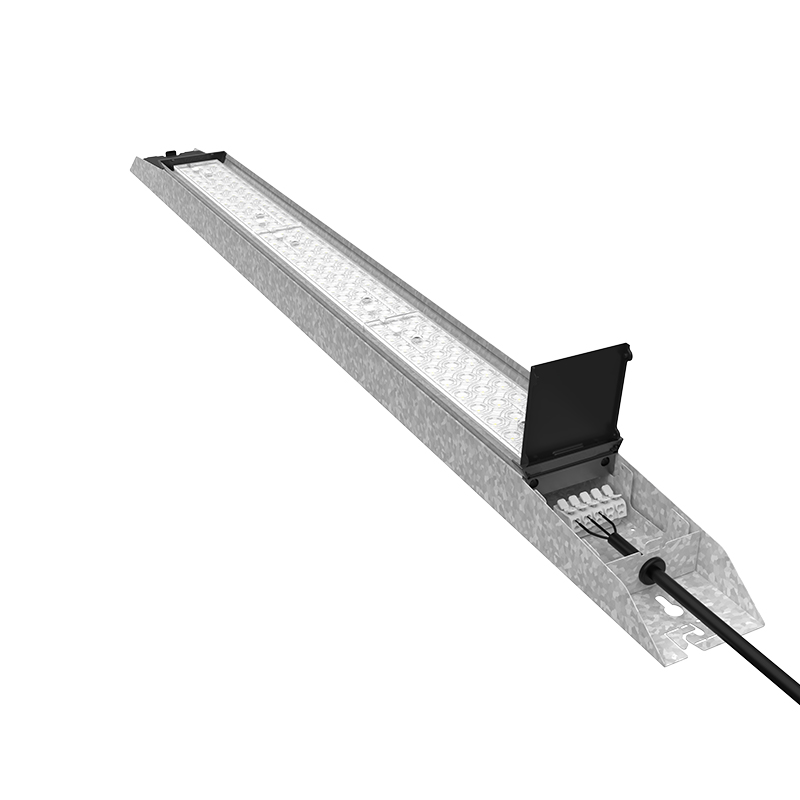

A Light-Dimmer
Version Is Available

An optional DALI dimming version, with a 5-phase straight line, can adjust the CCT (correlated color temperature) to four different options: 3000K, 4000K, 5000K and 6000K.

Available In Two Versions
(With Different Housings)

Two editions are available: Regular and Economy. The regular version adopts ADC12 aluminum die-casting material shell design, which has excellent heat dissipation performance. The Economy model offers a cost-effective option in a durable and affordable sheet metal enclosure.

Equipped With
High-Performance Drivers

Features high-quality performance and reliable Philips drivers. Designed to provide stable, efficient power to LED lights, ensuring optimal light output and lifespan, reducing energy consumption and lowering your electricity bill.

Ruggedized 3030 Diodes

Features rugged 3030 diodes for stable and reliable lighting in harsh environments. These diodes feature a robust design, efficient heat dissipation, excellent IP rating, and long lifetime.

Installation Mode

Industrial Linear LED Light Installation mode
