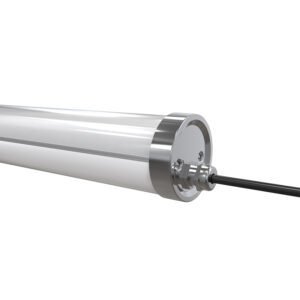

High Borosilicate Glass Tube LED Tri-Proof Light L9

Features:

  • IP67 & IP69K &IK07
  • Material: High boron silicon
  • High corrosion resistance, high hardnesaci, d and alkali resistant
  • Against water pressure of 100bar(1450psi) and temperature of 80°C
  • High borosilicate glass has a very low coefficient of thermal expansion and high-temperature resistance. The instantaneous temperature difference is -50°C to 150°C (under a sudden temperature change within 200°C), and it is not easy to burst.
  • Reach food grade standard.
  • High CRI >80
  • System efficiency up to 130lm/W & 150lm/W
  • Environmentally friendly, no mercury, No UV, No IR
  • Wide beam angle 120°
  • Quick Start instant 100% Luminous flux
  • 5Year Warranty on complete fixture. (LEDs, Driver, & Housing)
  • Certificate: CE, RoHS Certified
  • Surface Mount or Suspension Mount

Description

The TUBU LED tri-proof light is made of borosilicate glass tube and is chemical resistant, making it suitable for industrial and commercial settings. This tri-proof light is built to be durable and functional, meeting high standards and ensuring reliable lighting in any environment.

A distinctive feature of TUBU tri-proof lights is their ability to withstand water pressures up to 100 bar (1450 psi) and temperatures up to 80°C. This means they can easily handle challenging environments without compromising performance.

In addition, the High Borosilicate Glass used in this product has a low coefficient of thermal expansion, making it highly resistant to sudden temperature changes. It can handle temperature differences from -50°C to 150°C (within 200°C), minimizing the risk of bursting and giving you peace of mind in any situation.

The high borosilicate glass tube LED tri-proof light not only meets food-grade safety and quality standards, but also has excellent lighting performance. With system efficiencies of up to 130 lm/W and 150 lm/W, it provides bright and energy-efficient lighting, maximizing productivity and energy savings.

Tech Specs

Product Code

TBL9 2F-20W

TBL9 4F-40W

TBL9 5F-50W

TBL9 5F-60W

Power

20W

40W

50W

60W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.09A@220VAC

0.19A@220VAC

0.23A@220VAC

0.28A@220VAC

PF

0.90@220VAC

Dimming Option

0-10V/Dali

CCT

3000K/4000K/5000K/6000K

Ra>80

Luminous Flux

2600Lm±5%/3000Lm±5%

5200Lm±5%/6000Lm±5%

6300Lm±5%/5600Lm±5%

7800Lm±5%/9000Lm±5%

Ra>80

Efficiency

130Lm±5%/150Lm±5%

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40C L70>54000Hours

IP Class

IP67&IP69K

IK Class

Glass IK07

Certificate

CE, RoHs, CB, IK07, IP69K

Lamp Body Color

Glass transparent & 304/316 Stainless Steel End Caps

Product Size (mm)

Ø75*552

Ø75*1152

Ø75*1452

Ø75*1452

Packing Size (mm)

730*345*240

1330*345*240

1630*345*240

1630*345*240

Quantity/carton

9PCS

6PCS

6PCS

6PCS

Gross weight (kg) ±0.3

16

18

28

28

Installation mode

Surface Mount/Suspension Mount

High Hardness and Corrosion Resistance Glass Tube

With its exceptional corrosion resistance, hardness, and resistance to acid and alkali, this material can endure water pressure of up to 100 bar (1450 psi) and temperatures as high as 80°C. This assures reliability, even in the most challenging environments.

Resistant to High Temperature and

Temperature Difference

It is made of high borosilicate glass with an extremely low coefficient of thermal expansion and excellent resistance to high temperatures (withstanding temperature fluctuations from -50°C to 150°C). Avoid the risk of bursting.

With Internal PC Protection Cover

Comes with a inner PC cover that ensures even light distribution while providing an extra layer of protection that helps extend the life of the LED bulb.

LED Lights can be Linkable Mounted

The installation and connection between LEDs can be effortlessly carried out with the connectable terminals, which allow for easy and quick wiring. The use of the quick wiring port simplifies the wiring process and guarantees a secure and dependable connection.

Installation Mode

High borosilicate glass tube LED tri-proof light Installation mode L9glass

Application

Chemical Plant Lighting
Smelter LED Lighting
Laboratory Lighting
