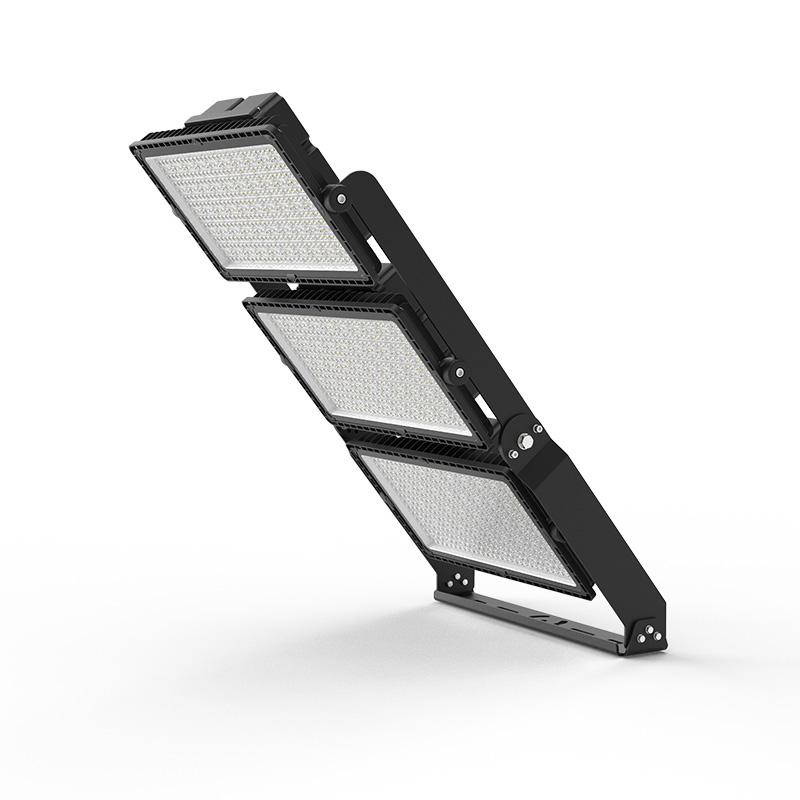

High Mast LED Flood Light

Features:

  • IP Rating: IP66
  • SDCM: <5
  • Brand driver, High PF>0.96 low THD driver, Flicker-free
  • Efficiency: Up to 160Lm/W, 140-190lm/W available
  • Beam Angle: 7°/15°/30°/60°/90°/120°Type2/Type3 PC lens
  • Certificate: CE, RoHS
  • Installation: Bracket
  • Warranty: 5 years

Description

TUBU High Mast LED Flood Light has IP66 protection that can prevent the light from high alst spray and ultraviolet procession meeting the needs of special places.

To improve our High Mast Floodlight’s features and extend its lifespan, we used 5mm tempered glass front, 6063 aluminum, anti-glare cover, and different LED chips of cree/bridge lux/lumileds 3030/3535.

Its directed bracket is flexible adjustment. Special design and hollow out design ensure high and efficient heat dissipation.

Diverse beam angle for option, 7°,15°,30°,60°,90°,120° Type2/Type3 PC lens.

CE, RoHs certified.

Tech Specs

Product Code

 HMG4-500W

HMG4-600W

HMG4-1000W

HMG4-1200W

HMG4-1500W

HMG4-1800W

Power

500W

600W

1000W

1200W

1500W

1800W

Input Voltage

100-277VAC

PF

0.90@220VAC

Dimming Option

0-10V/DALI

CCT

2700K/3000K/4000K/5000K/5700K/6500K

Ra>70

Luminous Flux

70000Lm/80000Lm

84000Lm/96000Lm

140000Lm/160000Lm

168000Lm/192000Lm

210000Lm/240000Lm

252000Lm/280000Lm

Ra>70

Efficiency

140Lm±5%/160Lm±5%

Beam Angle

7°/15°/30°/60°/90°/120°Type2/Type3 PC lens

Operation Temp

-40℃~+50℃ , 20~95%RH No condensation

Storage Temp

-20℃~+85℃ , 10~95%RH No condensation

Life Span

Ta 40C L70>54000Hours

IP/IK Class

IP66 / IK08

ICertificate

CE, RoHs

Lamp Body Color

Housing: Die-casting Aluminum Color: Black (RAL9005) Lens: pc

Product Warrant

5 years

Product Size (mm)

637*483*134

897*673*134

1286*673*134

Packing Size (mm)

672*534*188

990*763*220

1378*763*220

Gross weight (kg) ±0.3

16.5

40

56

Installation mode

Surface Mount/Bracket Mount

Outdoor High Mast Flood Light

With IP66 protection level, it can prevent high salt fog corrosion and ultraviolet rays, and is suitable for various outdoor environments.

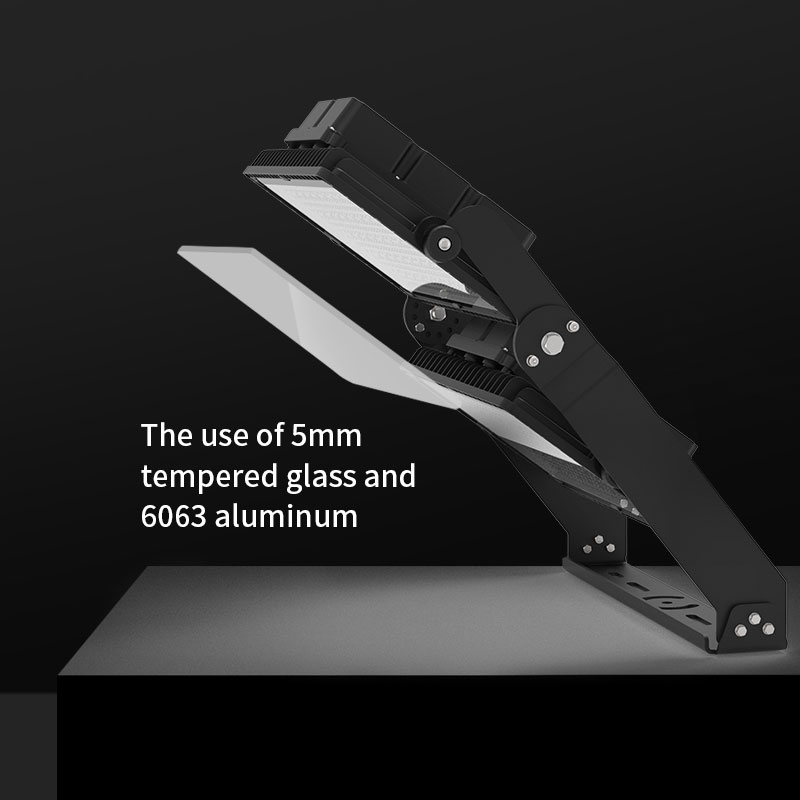

Durable Construction

The use of 5mm tempered glass and 6063 aluminum extends the life of the floodlight, making it a reliable long-term lighting solution.

Versatile Lighting Options

Available in Cree, Bridge Lux, Lumileds 3030 and 3535. These brands are highly regarded for their superior energy efficiency, allowing you to enjoy significant savings.

Adjustable Light Direction

The stand's flexibility and rotation feature allows for easy adjustment of the light direction, providing the flexibility needed to illuminate specific areas or objects with precision.

Efficient Heat Dissipation

The unique hollow design enhances the heat dissipation, thus improving the service life and performance of the lighting fixture.

Glare Reduction

The lighting environment is made comfortable and visually pleasing with the help of an anti-glare cover that reduces glare.

Wide Beam Angle Options

A range of beam angles (7°, 15°, 30°, 60°, 90°, 120°) and the inclusion of Type2/Type3 PC lens options offer a diverse selection of lighting distributions. This ensures that various applications can be catered to with optimal lighting effects.

Application

high mast led folld lighting
high mast led flood lights
TUBU High Mast LED Flood Light
