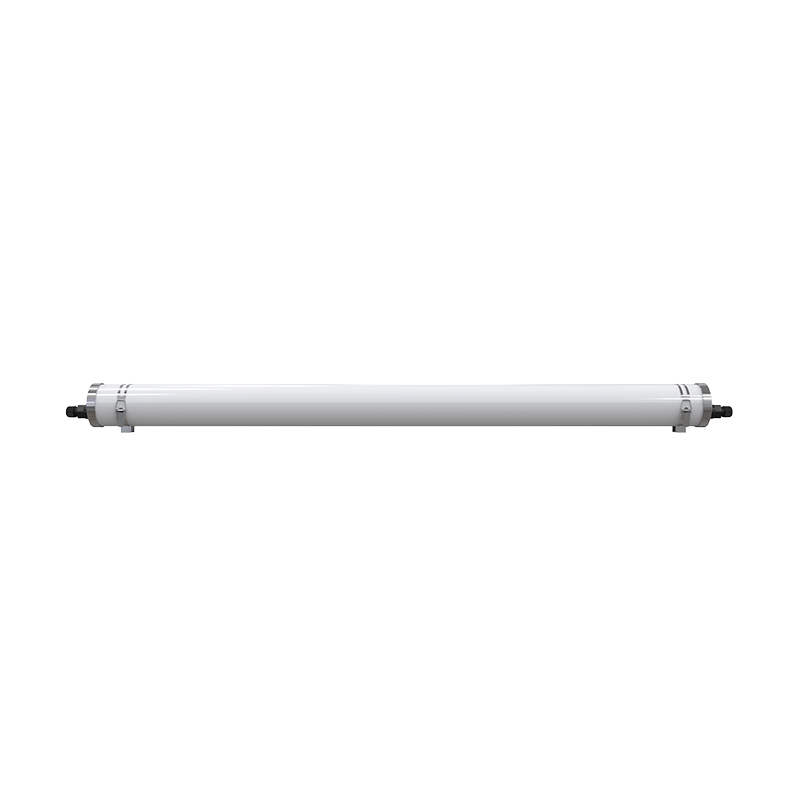

100mm Diameter Tubular LED Tri-Proof Light L9P

Features:

  • IP67 & IP69K &IK10
  • 100mm diameter round tube
  • PMMA IK08/PC IK10
  • Anti-ammonia
  • Against water pressure of 100bar(1450psi) and temperature of 80°C
  • System efficiency up to 170lm/W
  • High CRI >80
  • Environmentally Friendly, No Mercury, No UV, No IR
  • Wide Beam Angle 120°
  • Energy Efficiency Grade: C
  • Quick Start Instant 100% Luminous Flux
  • 5 Year Warranty on Complete Fixture. (LEDs, Driver, & Housing)
  • Certificate: CE, RoHS Certified
  • Surface Mount or Suspension Mount

Description

With a diameter of 100 mm and made of PMMAIK08/PCIK10 material, the tubular tri-proof lamps guarantee excellent impact resistance and ensure long-lasting reliability, withstanding water pressure up to 100 bar (1450 psi) and temperatures up to 80°C. Ideally suited for outdoor and industrial applications, the ammonia resistance of the tubular tri-proof lamps makes them a reliable lighting solution for harsh environments.

UBU's 100mm Diameter Tubular LED Tri-Proof Light has impressive system efficiencies, reaching up to 140 lm/W and 170 lm/W. These efficiencies guarantee excellent energy savings over time. Moreover, these lamps boast a high Color Rendering Index (CRI) of over 80, enhancing color representation and providing a visually appealing and lifelike lighting experience. Additionally, the adjustable CCT allows customization of the light source to suit any environment. Furthermore, these lamps are environmentally friendly as they are free from mercury, UV, and IR emissions. This makes them a safe and sustainable choice for both indoor and outdoor settings.

TUBU's LED tri-proof lights are CE, Restriction of Hazardous Substances Directive certified and meet the highest safety standards.

Tech Specs

Product Code

TBL9P2F-30W

TBL9P4F-60W

TBL9P5F-80W

Power

30W

60W

80W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.15A@220VAC

0.3A@220VAC

0.4A@220VAC

PF

0.90@220VAC

Dimming Option

0-10V/DALI/D4i

CCT

3000K/4000K/5000K/6000K

Ra>80

Luminous Flux

3900Lm/4500Lm(±5%)

7800Lm/9000Lm(±5%)

10400Lm/12000Lm(±5%)

Ra>80

Efficiency

130Lm/W(±5%) / 150Lm/W(±5%)

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40C L70>54000Hours

IP Class

IP67&IP69K

IK Class

PMMA IK08/PC IK10

Certificate

CE, RoHs, CB, IK10, IP69K

Lamp Body Color

Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps

Product Size (mm)

Ø105*552

Ø105*1152

Ø105*1452

Packing Size (mm)

730*345*240

1330*345*240

1630*345*240

Quantity/carton

9PCS

6PCS

6PCS

Gross weight (kg) ±0.3

14

15

17.5

Installation mode

Surface Mount/Suspension Mount

Anti-Ammonia Tubular Tri-Proof Light

The anti-ammonia tri-proof lamp has obtained IP67, IP69K, IK10 and other certifications. Ensures ability to withstand high ammonia content environments. They are designed to resist submersion, high temperature, high pressure and severe shock.

Three-Phase Electricity Optional

The equipment's optional mode of 0-10V/DALI/D4i three-phase power guarantees compatibility and seamless integration of the dimming mode into the current lighting infrastructure.

Excellent Durability and Light Diffusion

End caps are constructed of 304/316 stainless steel for durability and corrosion resistance.

The creamy white PC/PMMA housing serves to enhance light diffusion, minimize glare, improve aesthetics, boost durability, and provide UV resistance.

Stainless Steel Mounting Brackets are strong and durable enough to hold LED lights securely in place for extended periods of time

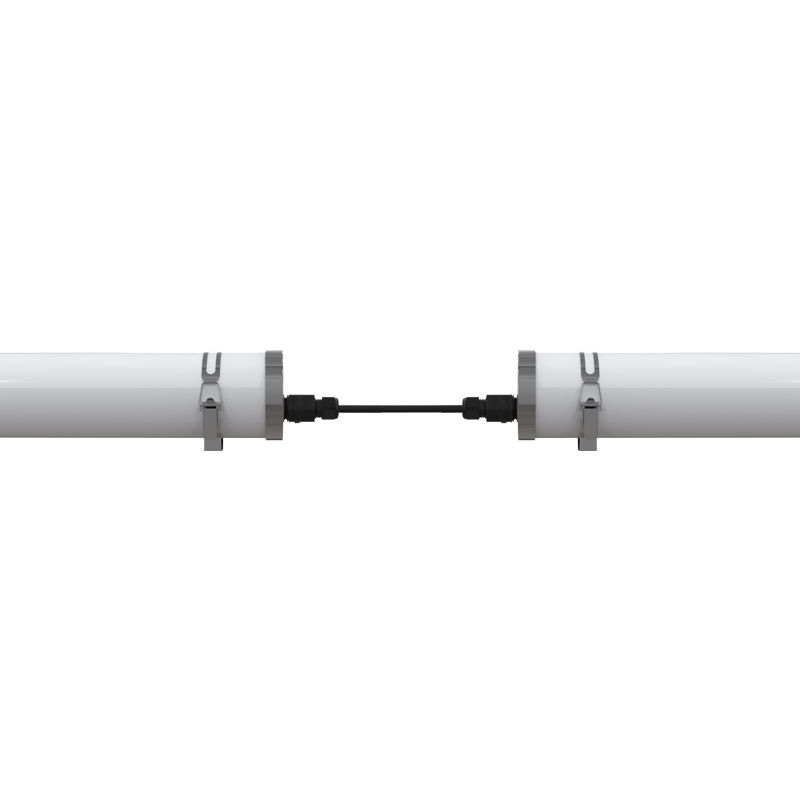

Quick Wiring, Easy to Use

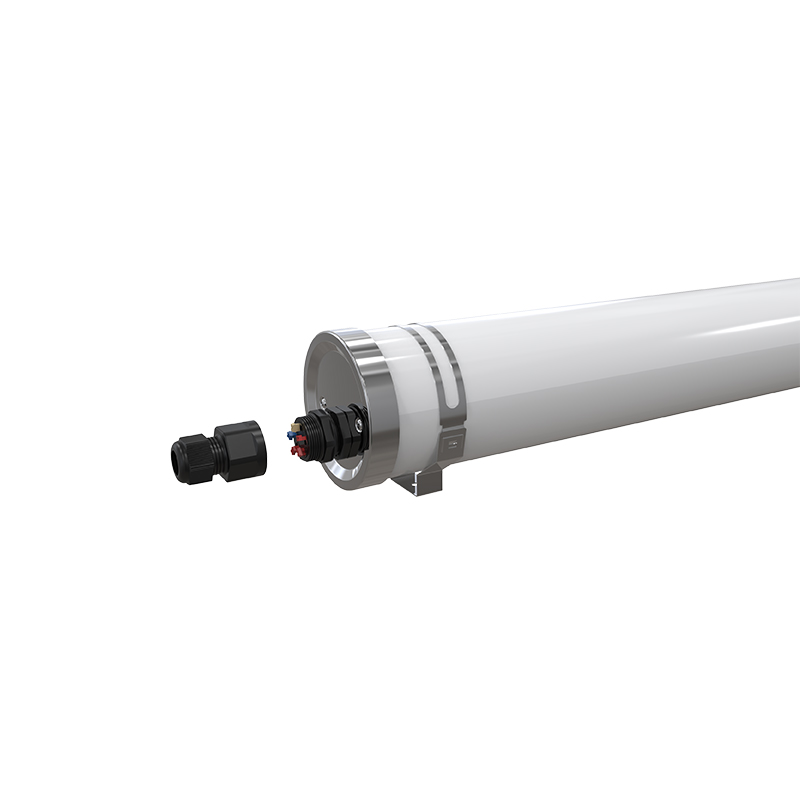

The product with quick wire port integration, allowing for faster and simpler installation. It utilizes 5-conductor straight-through cables to establish efficient electrical connections, ensuring optimal energy performance.

Installation Mode

100mm Diameter Tubular LED Tri proof Light L9P Installation mode

Application

farm lighting
food processing lighting
ship lighting
