47mm Diameter Mini Round Tube Tri-proof Light L9M

Features:

  • IP69K, IP66
  • PC IK08
  • Diameter47mm round tube
  • System efficiency up to 150lm/W
  • High CRI >80, SDCM<3
  • Environmentally friendly, no mercury, No UV, No IR
  • Wide beam angle 120°
  • Energy Efficiency Grade:C
  • Quick Start instant 100% Luminous flux
  • 5 Year Warranty on Complete Fixture. (LEDs, Driver, & Housing)
  • Certificate: CE, RoHS Certified
  • Surface Mount or Suspension Mount
  • Dimming mode: PWM

Description

This Mini Tubular LED Tri-proof Light, a round tube with a diameter of 47mm. With an IP66 and PC IK08 rating, this light offers excellent dust and water resistance, making it suitable for both indoor and outdoor applications.

With system efficiencies of up to 150 lm/W, the Mini Tubular LED Tri-proof Light provides bright illumination while consuming less energy. It is also environmentally friendly, as it contains no mercury, UV, or IR emissions, ensuring safety for both you and the environment.

The wide beam angle of 120° ensures a wide coverage of light, eliminating dark spots and providing even illumination. This creates a well-lit space with no areas of uneven lighting.

Additionally, the 47mm Diameter Mini Round Tube LED Tri-proof Light offers the convenience of fast startup and instant 100% light flux, eliminating any lag or flickering.

We stand behind the quality and durability of our products by offering a comprehensive 5-year warranty on the entire luminaire, including the LEDs, driver, and housing. Our Mini Tubular LED Tri-proof Light L9M is also CE and RoHS certified, meeting the highest safety and quality standards.

For easy installation, you can choose between surface or pendant mounts, allowing you to select the method that best suits your space. Whether you need lighting for commercial, residential, or outdoor purposes, our 47mm diameter mini round tubes are the perfect solution.

Tech Specs

Product Code

TBL9M2F-15W

TBL9M4F-30W

TBL9M5F-45W

Power

15W

30W

45W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.07A@220VAC

0.14A@220VAC

0.23A@220VAC

PF

0.90@220VAC

Dimming Option

0-10V/Dali

CCT

2700-6500K

Ra>80

Luminous Flux

1950Lm/2250Lm(±5%)

3900Lm/4500Lm(±5%)

5850Lm/6750Lm(±5%)

Ra>80

Efficiency

130Lm/W±5% / 150Lm/W±5%

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40C L70>54000Hours

IP Class

IP66

IK Class

PC IK08

Certificate

CE, RoHs

Lamp Body Color

Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps

Product Size (mm)

Ø47*552

Ø47*1152

Ø47*1452

Packing Size (mm)

690*163*168

1290*163*117

1590*163*117

Quantity/carton

16PCS

16PCS

16PCS

Gross weight (kg) ±0.3

14

14

17.5

Installation mode

Surface Mount/Suspension Mount

Built to Last, Rain or Shine!

The device is designed with an IP66 protection level and a PC IK08 structure, ensuring excellent resistance to dust, water, and overall durability.

Small Size Big Purpose

The 47mm diameter size is perfect for compact areas where larger luminaires cannot be installed.

All Modules are Replaceable

The product's modules are designed to be easily removed and replaced. This ensures that your triple protection light can always stay up-to-date with the latest features. It also makes maintenance and repairs simpler and more convenient.

Easy to Wire and Easy to Use

The 3-conductor straight-through cable with quick terminal posts is specifically designed to make the wiring process simpler, leading to faster and more efficient installation. Its push-in or snap-in mechanism allows for easy insertion and secure fastening of wires.

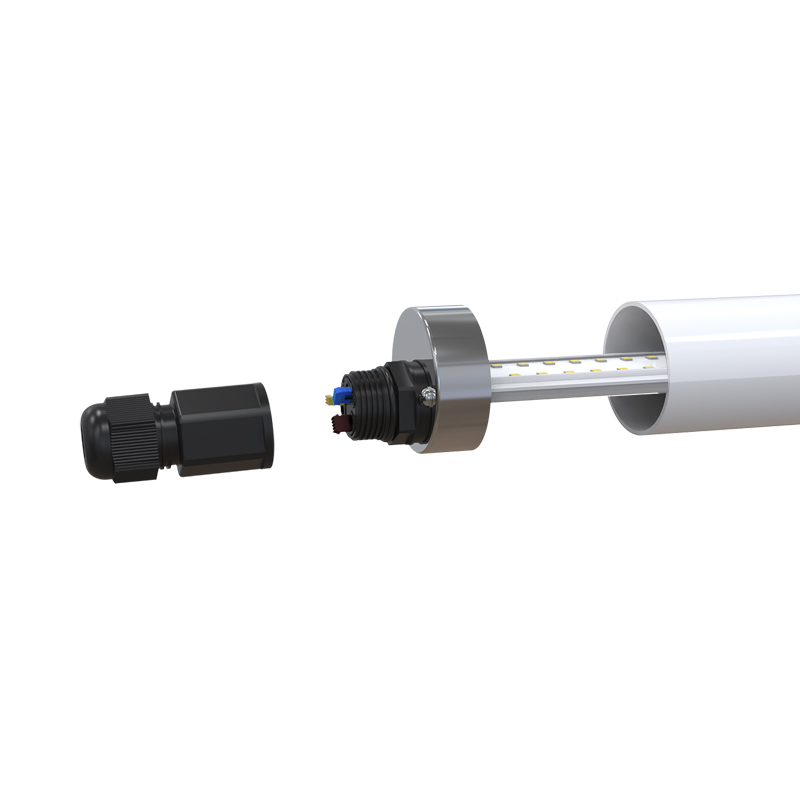

Spliceable Quick-Connect Terminals


The quick-connect terminal with splice capabilities simplifies the process of connecting multiple Led triple-guard lights to a single switch. This reduces the mess of wire connections and makes maintenance easier. It offers convenience and flexibility in managing lighting systems.

Installation Mode

45mm Diameter Round Tube Tri-proof Light L9M Installation mode

Application

Supermarket lighting LED lights
School lighting LED lights
Office Lighting LED Lights
