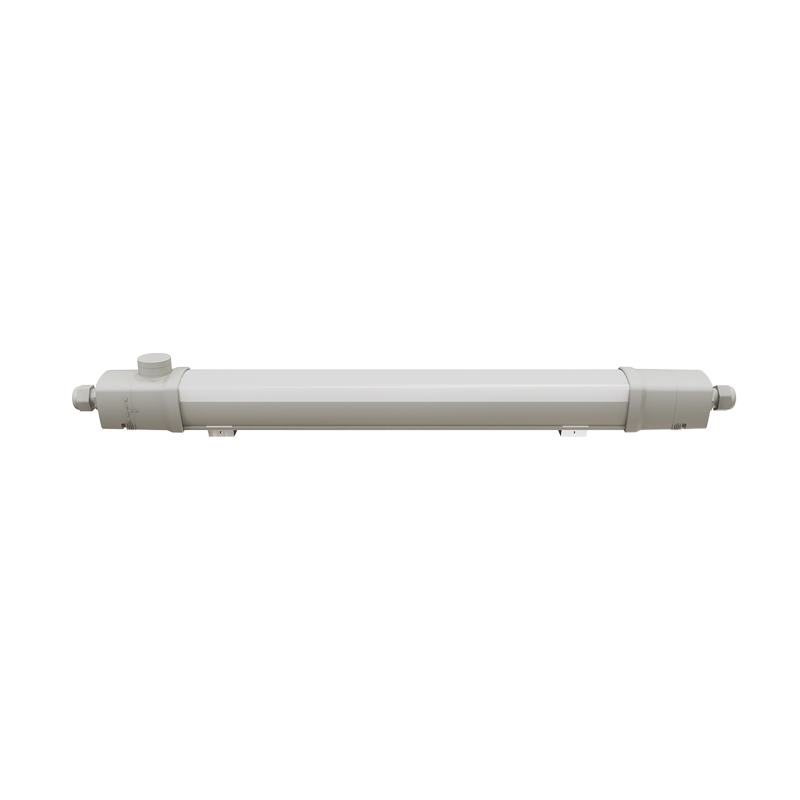

Motion Sensor LED Tri-proof Light L11

Features:

  • IP65 &IK08
  • Wireless Control: Microwave Sensor、PIR Sensor、Zhaga Socket
  • 3-core, 5-core Through Wiring
  • Dial to Adjusting Power and Color Temperature
  • Material Quality: PC
  • System Efficiency Up to 140lm/W & 160lm/W
  • High CRI >80
  • Environmentally Friendly, No Mercury, No UV, No IR
  • Wide Beam Angle 120°
  • Energy Efficiency Grade: C
  • Quick Start Instant 100% Luminous Flux
  • 5 Year Warranty on Complete Fixture. (LEDs, Driver, & Housing)
  • Certificate: CE, RoHS Certified
  • Surface Mount or Suspension Mount
  • Dimming mode: PWM/0~10V/DALI

description

The Motion sensor LED Tri-proof Light L11 is an advanced lighting solution equipped with three control options - microwave sensor, PIR sensor, and Zhaga socket. These control mechanisms enable easy operation, ensuring the lights are only activated when needed and conserving energy when not in use.

This light offers installation flexibility with both 3-conductor and 5-conductor straight-through cabling, making it suitable for various cabling setups and environments.

One notable feature of this LED Tri-proof Light is its dial, allowing users to adjust the power and color temperature effortlessly using simple knobs. This customization capability enables users to create the perfect lighting ambiance for any space, tailored to their preferences and requirements.

With an impressive system efficiency of up to 140 lm/W and 160 lm/W, this Motion sensor LED Tri-proof Light L11 provides excellent brightness while ensuring energy savings. It also boasts a high color rendering index (CRI) of over 80, guaranteeing accurate color performance and enhancing the overall visual experience. Additionally, it is environmentally friendly as it contains no mercury, emits no harmful UV or IR radiation, and is safe for both people and the environment. With a wide beam angle of 120°, it delivers uniform illumination over a large area.

Tech Specs:

Product Code

 TBL11P2F-25W

TBL11P4F-35W

TBL11P5F-45W

Power

25W (25W/21W/18W/15W)

35W (35W/30W/25W/20W)

45W (45W/38W/32W/25W)

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.12A@220VAC

0.18A@220VAC

0.23A@220VAC

PF

0.90@220VAC

Dimming Option

0-10V/Dali

CCT

3000K/4000K/5000K/6000K

Ra>80

Luminous Flux

3500Lm±5%/4000Lm±5%

4900Lm±5%/5600Lm±5%

6300Lm±5%/5600Lm±5%

Ra>80

Efficiency

140Lm±5%/160Lm±5%

140Lm±5%/160Lm±5%

140Lm±5%/160Lm±5%

LED Brand

Lumileds/Hongli 2835

Beam Angle

120°C

Operation Temp

-20C~+40°C

Storage Temp

-20C~+60°C

Life Span

Ta 40C L70>54000Hours

IP Class

IP65

IK Class

PC IK08

Certificate

CE, RoHs, IK08,

Lamp Body Color

Milky PC

Product Size (mm)

650*58*62

1250*58*62

1550*58*62

Individual package size (mm)

660*65*65

1260*65*65

1560*65*65

Packing Size (mm)

680*215*215

1280*215*215

1580*215*215

Quantity/carton

9PCS

9PCS

9PCS

Gross weight (kg) ±0.3

12

12

14

Installation mode

Surface Mount/Suspension Mount

Easy Sensor Installation LED Tri-proof Light L11

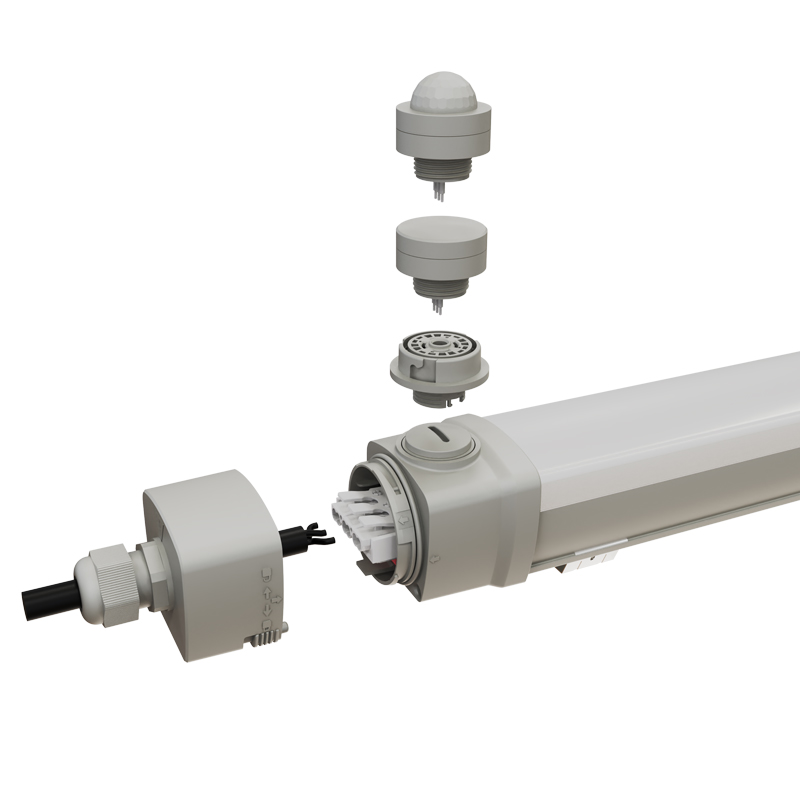

LED tri-proof lights with a reserved sensor socket simplify the installation of motion sensors, occupancy sensors, or other sensors with a Zhaga socket. The dedicated connection point eliminates the need for extra wiring or modifications, saving time and effort

Optional Sensor

There are three options for wireless control that can detect motion and activate the lights accordingly. These options include the Microwave Sensor, PIR Sensor, and Zhaga Socket. Using any of these options can lead to substantial energy savings.

equipped with adjustable dial

By utilizing the adjustable power and color temperature knobs, you can personalize the lighting experience according to your preferences and requirements. Helps save energy and creates a more pleasant and comfortable environment.

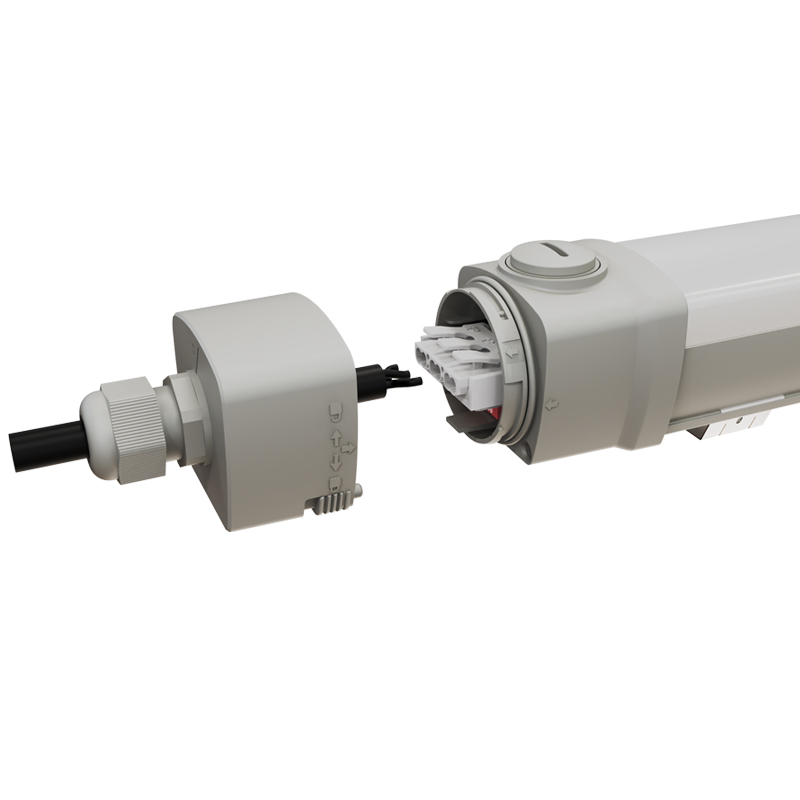

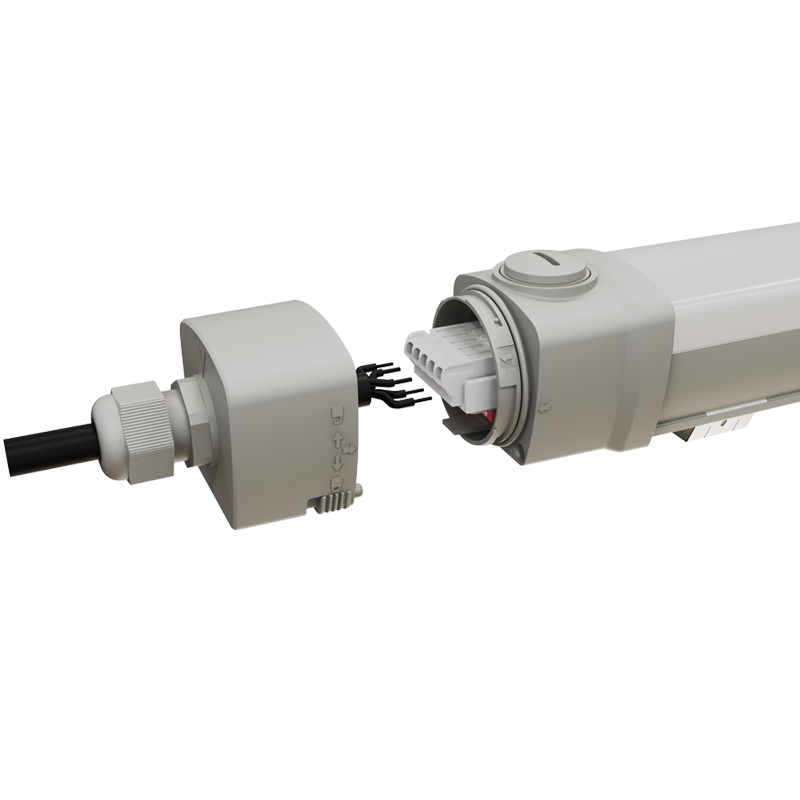

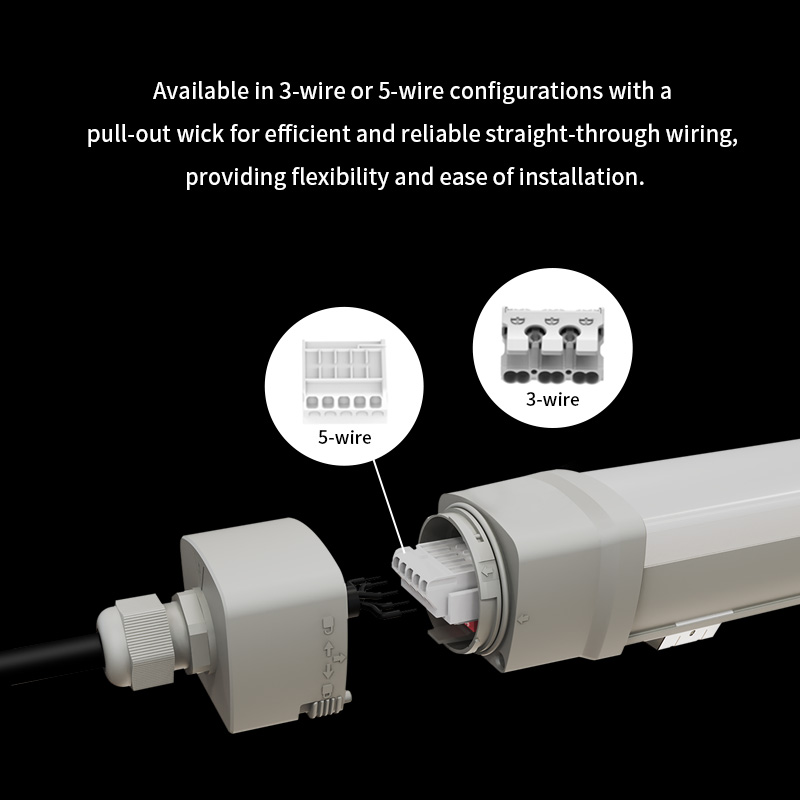

wiring convenience

Features 3-wire and 5-wire straight-through with a convenient pull-out wick for efficient and reliable straight-through wiring. In addition, quick-connect posts speed up the installation process and reduce the cost of hiring an electrician.

convenience and automation

PIR sensors add convenience by automating the lighting process. You don't have to turn the lights on or off manually, as the sensors detect movement and do it for you.

installation mode

Motion Sensor LED Tri-proof Light Installation-mode

Applications

Parking lot lighting LED Light
Hospital lighting LED Light
Warehouse lighting LED Light
