IP66 LED Area Flood Light F3

Features:

  • High Output LED's, up to 130~140lm/W
  • Brand driver, High PF>0.96 low THD driver, Flicker-free
  • Environmentally friendly, no mercury, No UV No IR
  • 4 Different Beam angle covers 90% application
  • ANB:32°x 84°Tilt 30°/AWB:50°x88°Tilt45°/ SNB:25°x75/ SWB:36°x 88°
  • lP66 protection rating; for indoor &outdoor use
  • Energy Efficiency Grade: C
  • Quick Start instant 100% luminous flux
  • 5 Year Warranty on complete fixture.(LED'sDriver&Housing)
  • Certificate: CE, RoHS
  • Body: Aluminium alloy
  • Stainless steel screws
  • Options: 1-10V, DALI Dimming

Description

The TUBU's IP66 LED Area Flood Light range is specially designed to replace traditional HID and HIF lights for outdoor use. It utilizes LM80/TM21-certified Lumileds or Nichia LEDs and a Meanwell LED driver for exceptional performance.

These lights surpass the industry standard of 130lm/W and can reach up to 140lm/W/W, thanks to their innovative optics and thermally efficient design. They are also capable of being dimmed and integrated with a 1-10V DAIL system and sensors, allowing for energy savings of up to 80%. The range offers various options such as 75W, 100W, 150W, and more, making it suitable for 90% of outdoor applications.

The LED Area Flood Light adds a touch of elegance to outdoor lighting with its sleek design and highly efficient photometric properties. It strikes a perfect balance between aesthetics and functionality. With its high luminous flux, it effectively illuminates buildings, walls, playgrounds, crossroads, advertising boards, and objects with long and narrow outlines. The wide range of light distributions ensures that the light is directed precisely where it is needed.

Tech Specs

Product Code

TB-AL-75W

TB-AL-100W

TB-AL-150W

Power

75W

100W

150W

Input Voltage

200-240VAC(50/60Hz)

Input Current

0.34A@220VAC

0.45A@220VAC

0.68A@220VAC

PF

>0.98@220VAC

DC output voltage

48V

DC output current

1.4A

1.9A

2.9A

Dimming(Optional)

3 in 1 dimming (PWM, 0-10V, Resistor)、Dali

CCT

3000K/4000K/5000K/6000K

RA>80

5000K

Luminous Flux

9750Lm±10%

13000Lm±10%

19500Lm±10%

Efficiency

130Lm/W±5%

RA>70

5000K

Luminous Flux

10500Lm±10%

14000Lm±10%

21000Lm±10%

Efficiency

140Lm/W±5%

LED Brand

3030

Light Type

Asymmetric and symmetric light

Operation Temperature

-40℃~+45℃

Storage Temperature

-40℃~+85℃

Life Span

Ta 45℃ L70>54000Hours

IP Class

IP66

IK Class

IK10

Certificate

CE, RoHs

Lamp Body Color

Gray(default with RAL9007)、Black(optional for RAL9005)

Product Size (mm)

331*374*50mm

Net weight (kg) ± 0.1

4.58

4.63

4.76

Packing Size (mm)

430*370*76mm

Gross weight (kg) ± 0.1

4.98

5.03

5.16

Total Size (mm) (2pcs)

445*328*390mm

Total weight (2pcs) ± 0.2

20.68

20.88

21.4

Installation

Bracket Mount

Energy-Saving And
High-Efficiency LED Area Light

Utilizing state-of-the-art optical and thermal efficiency technologies, it exceeds the standard of 130 lumens per watt and can reach 140 lumens per watt. Ensuring optimal energy savings while delivering exceptional brightness.

High-Quality Driver

With the Nichia LED wick and Meanwell drivers, high power factor (>0.96) and low total harmonic distortion (THD) are ensured. As a result, you can enjoy flicker-free lighting.

With Photosensor Function

The light can come with a photoelectric sensor that automatically adjusts the light level based on the surrounding environment. This functionality guarantees both energy efficiency and convenience.

Flexible Dimming Options

The light comes in a 3-in-1 dimming version, which includes PWM, 0-10V, and resistance. It is also compatible with the Dali system, offering users various options to adjust the light intensity based on their specific requirements.

Adjustable Installation Angle

The light is equipped with an angle adjuster and a mounting bracket, which can easily adjust the lamp to the desired installation angle, ensuring maximum coverage and adapting to different lighting requirements.

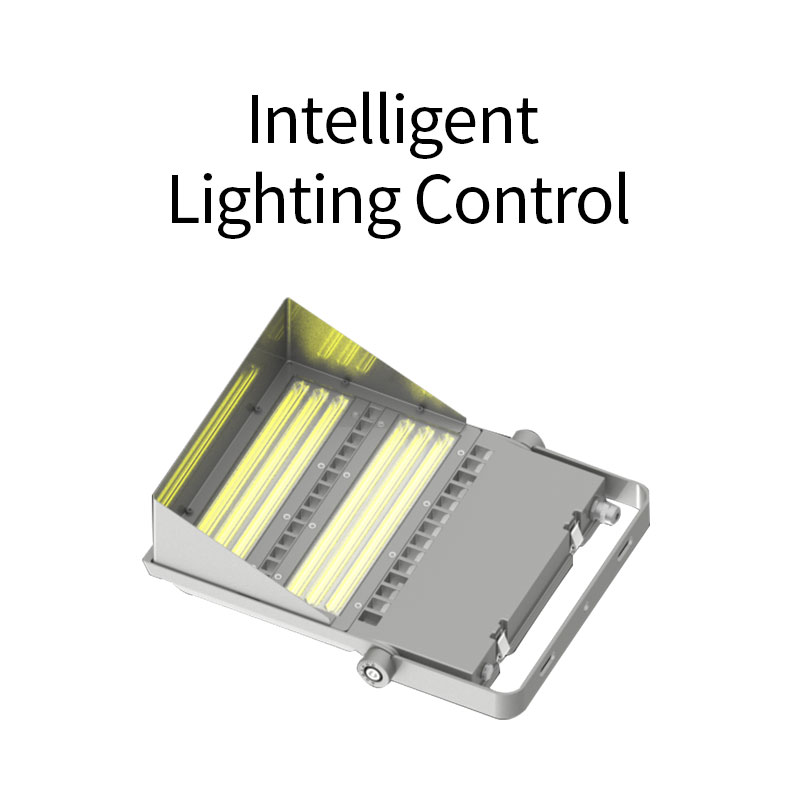

Intelligent Lighting Control

Designed with intelligent light-controlled switches and pollution-free light barriers. These features are designed to reduce light pollution and promote more efficient and environmentally friendly lighting systems.

Wide Beam Angle Options

There are several different wide beam angles to choose from, including options for both asymmetric and symmetrical light distribution (ANB, AWB, SNB, SWB).

Installation mode

LED Area Light Installation mode

Appliance

area-light-using in parking lot


Area Lights using in Football Field
area lights
