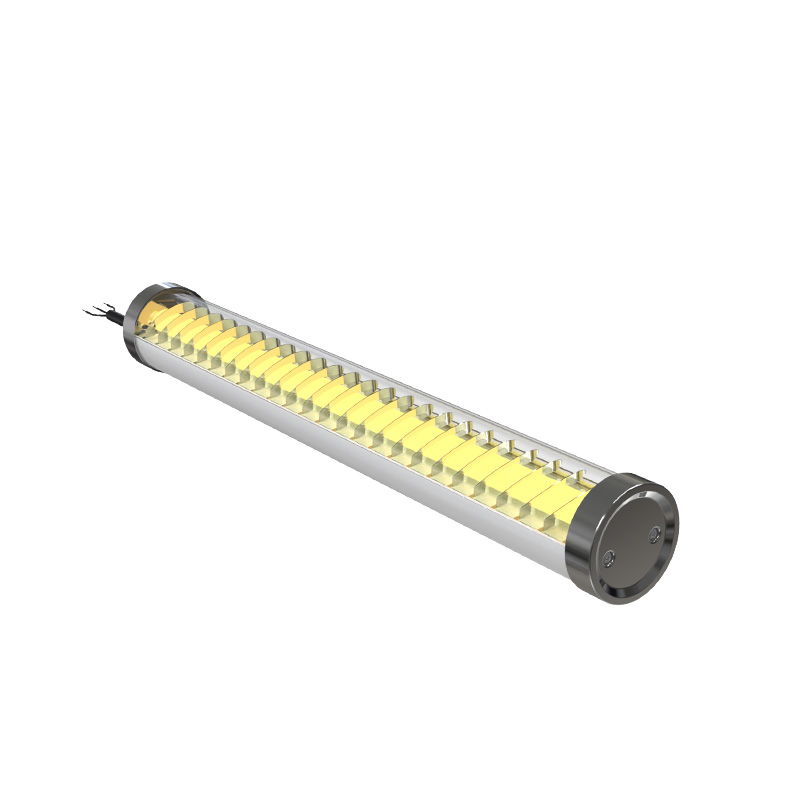

IP69K Grid Type LED Tubular Wall Light L9G

Features:

  • IP67 & IP69K
  • PMMA IK08/PC IK10
  • Against water pressure of 100bar(1450psi) and temperature of 80℃.
  • System efficiency up to 60lm/W.
  • High CRI> 80x120°.
  • Environmentally friendly, no mercury, No UV, No IR.
  • Wide beam angle of 80°.
  • Quick Start instant 100% luminous flux.
  • 5 Year Warranty on complete fixture. (LEDs, Driver, & Housing).
  • Certificate: CE, RoHS Certified.
  • Surface Mount or Suspended.

Description

The grid style of TUBU LED tri proof light is a powerful fixture that provides brighten and enhance lighting with system efficiency up to 100lm/W.

Due to its Milky PC/PMMA housing + stainless steel end caps, it can withstand extreme temperatures of between -20 °C and +40 °C and resist chemicals.

This TUBU Triproof light provide multiple of CCT for options: 3000K, 4000K, 5000K, 6000K.

IP67K/69K Waterproof and PMMA IK08/PC IK 10, suitable for harsh outdoor environment with 5 long year warranty on complete fixture.

Tech Specs

Product Code

TBL92F-20W-G

TBL94F-40W-G

TBL95F-50W-G

TBL95F-60W-G

Power

20W

40W

50W

60W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Input Current

0.09A@220VAC

0.19A@220VAC

0.23A@220VAC

0.28A@220VAC

Power Factor

0.90@220VAC

Dimming Option

0-10V/Dali

Color Temperature

3000K/4000K/5000K/6000K

CRI>80

Luminous Flux

1200Lm±5%

2400Lm±5%

3000Lm±5%

3600Lm±5%

Efficiency

60Lm/W±5%

LED Brand

Lumileds/Hongli

Beam Angle

80x120°

Operation Temperature

-20℃~+40℃

Storage  Temperature

-20℃~+60℃

Life Span

Ta 40℃ L70>54000Hours

IP Class

IP67 & IP69K

IK Class

PMMA IK08 & PC IK10

Certificate

CE, RoHs, CB, IK10, IP69K, ENEC

Lamp Body Material

Milky PC/PMMA Housing & 304/316 Stainless Steel End Caps

Product Size ( mm )

75*552

75*1152

75*1452

75*1452

Packing Size ( mm )

730*260*260

1330*260*180

1630*260*180

1630*260*180

Quantity / Carton

9pcs

6pcs

6pcs

6pcs

Gross Weight ( kg ) ± 0.3

12

15

23

23

Installation

Surface Mount & Suspenion Mount

Grid Type LED Tubular Wall Light

System efficiency up to 100lm/W, wide beam angle 80°

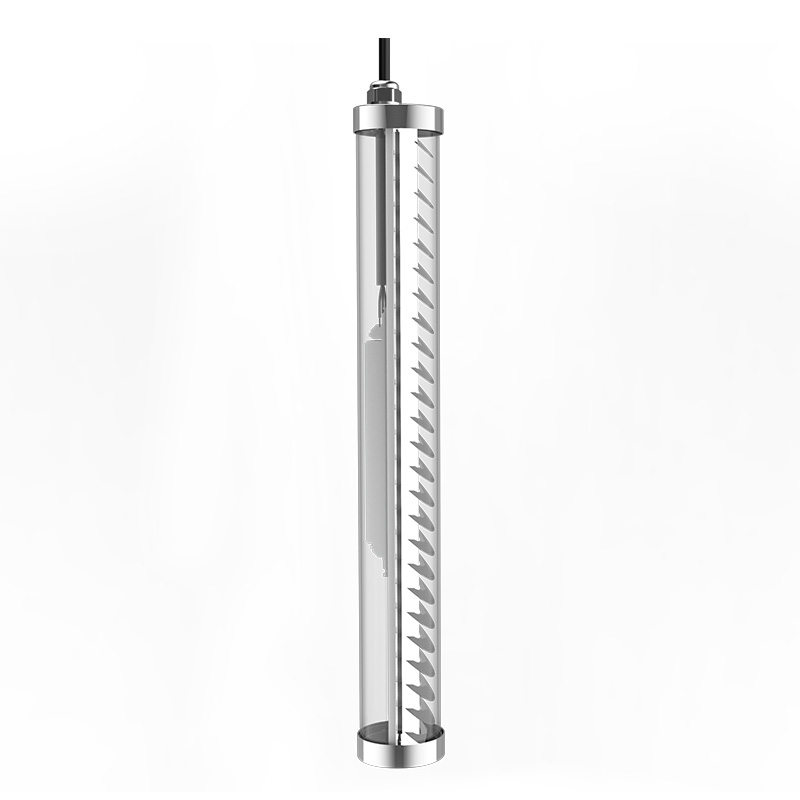

Optimum Lighting Comfort

Sammode technology and design enhance the perfect blend of transparency and reflectivity. The metal shutters with slanted slats subtly hide the light source and ensure optimum lighting comfort.

IP69K Degree Of Protection

The IP69K protection rating ensures outstanding defense against dust, water, and high-pressure cleaning. It can endure powerful water flow coming from any direction without allowing any water to seep through.

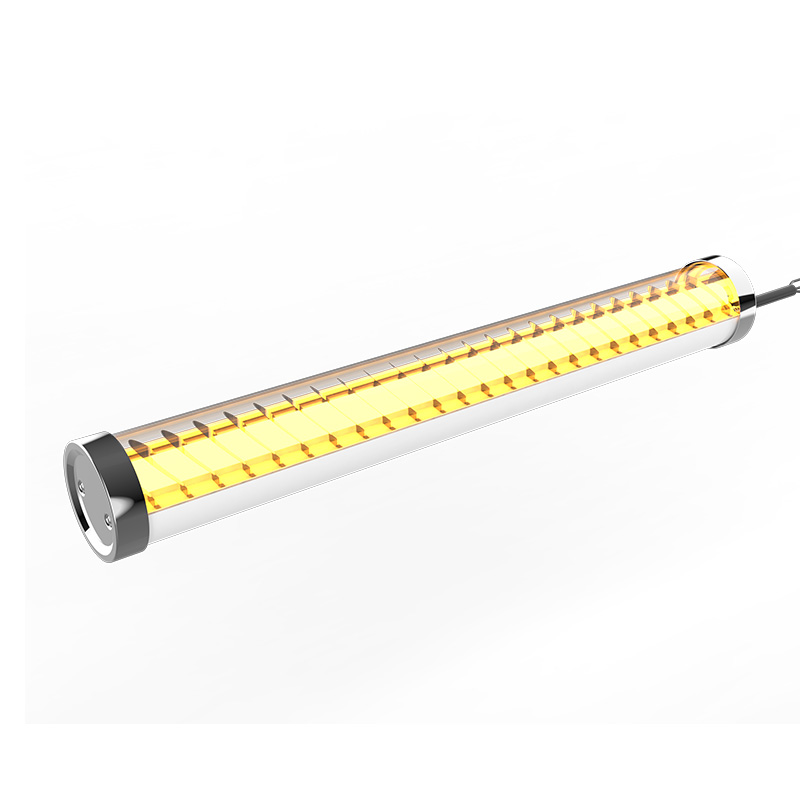

A Variety Of CCTs Are Available

Four kinds of CCT are optional, including warm and pleasant 3000K, neutral and balanced 4000K, cool and bright 5000K, and daylight-like 6000K. Create the perfect ambiance for any setting.

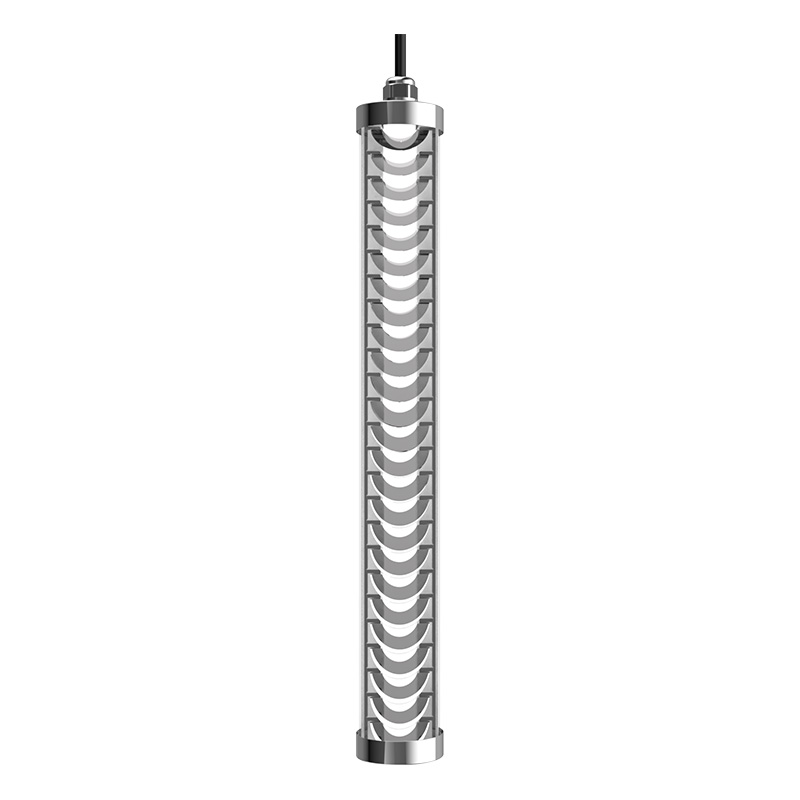

Architectural Art Lighting

The grid type wall light has a unique architectural art design. Available in a variety of colors, you can choose the one that best suits your style and decor.

Applications

wall light hallway lighting
wall light outdoor lighting
wall light interior lighting
