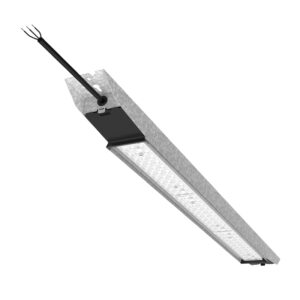

Industrial Linear LED Light L16
Features:
Description
TUBU’s L16 LED Industrial Linear Light is a lighting machine developed for industry but also an excellent solution for compartments and grocery stores with high demands on energy efficiency and lighting comfort.
The combination of a very flexible installation, energy efficiency of up to 150Lm/w±5% / 180Lm/w±5% (Ra>80) and a replaceable light engine makes the L16 hard to beat.
Robust 3030/5050 SMD LED diodes and industrial drivers ensure maintenance-free light for a long time to come and the day it is time to update the lighting this is made both easier and with significantly lower cost and environmental impact thanks to the replaceable light engine.
Tech Specs
Product Code | TBL16-75W | TBL16-90W | TBL16-120W |
|---|---|---|---|
Power | 75W | 90W | 120W |
Input Voltage | 200-240VAC/100-277VAC (50/60HZ) | ||
Input Current | 0.35A@220VAC | 0.45A@220VAC | 0.6A@220VAC |
PF | 0.90@220VACV | ||
Dimming Option | DALI / 1-10V / Emergency / Sensor | ||
CCT | 2700K / 3000K / 4000K / 5000K / 5700K / 6000K /6500K | ||
Ra>80 Luminous Flux | 11250Lm / 13500Lm | 13500Lm / 16200Lm | 18000Lm / 21600Lm |
Ra>80 Efficiency | 150Lm/w±5% / 180Lm/w±5% (Ra>80) | ||
LED Brand | Lumileds / Hongli 3030 / 5050 | ||
Beam Angle | 30° / 60°/ 70°(UGR≤22) / 90° | ||
Operation Temp | -20C~+40°C | ||
Storage Temp | -20C~+60°C | ||
Life Span | Ta 40°C L70>100,000 hours | ||
IP Class | IP23 | ||
IK Class | IK08 | ||
Certificate | CE, RoHS | ||
Lamp Body Color | Painted(Ral 9006) Galvanised steel; LED Body: Extruded Aluminium | ||
Product Size (mm) | 1230*94*66 | 1830*94*66 | 1830*94*66 |
Packing Size (mm) | 1270*241*260 | 1840*241*185 | 1840*241*185 |
Quantity/carton | 4PCS | 4PCS | 4PCS |
Gross weight (kg) ±0.3 | 10.1 | 14.6 | 14.6 |
Installation mode | Surface Mount/Suspension Mount | ||
Economic Versions
Industrial Linear LED Light
Use cost-effective and durable materials, reduce maintenance needs, and employ easy-to-replace systems to increase sustainability. System efficiency is 150Lm/w±5% / 180Lm/w±5% (Ra>80).
Replaceable Lighting Engines
The entire Lighting Engine can be easily removed and replaced manually. By quickly replacing the Lighting Engine, you can extend the service life of the entire lamp and reduce the cost of use.
Easy Wiring
Quick wiring ports with snap mechanism for safe and intuitive wiring. Reduce labor installation costs and provide more convenience. The standard configuration is a three-phase through-wire with a size of 7x2.5mm².
A Light-Dimmer
Version Is Available
An optional DALI / 1-10V / Emergency / Sensor version, with a 5-phase straight line, can adjust the CCT (correlated color temperature) to different options: 2700K / 3000K / 4000K / 5000K / 5700K / 6000K /6500K.
Painted(Ral 9006) Galvanised Steel
Industrial Linear LED Light uses an iron plate shell, which is durable and cost-effective.
Equipped With
High-Performance Drivers
Features high-quality performance and reliable Philips drivers. Designed to provide stable, efficient power to LED lights, ensuring optimal light output and lifespan, reducing energy consumption and lowering your electricity bill.
Ruggedized 3030 Diodes
Features rugged 3030 diodes for stable and reliable lighting in harsh environments. These diodes feature a robust design, efficient heat dissipation, excellent IP rating, and long lifetime.
Installation Mode
