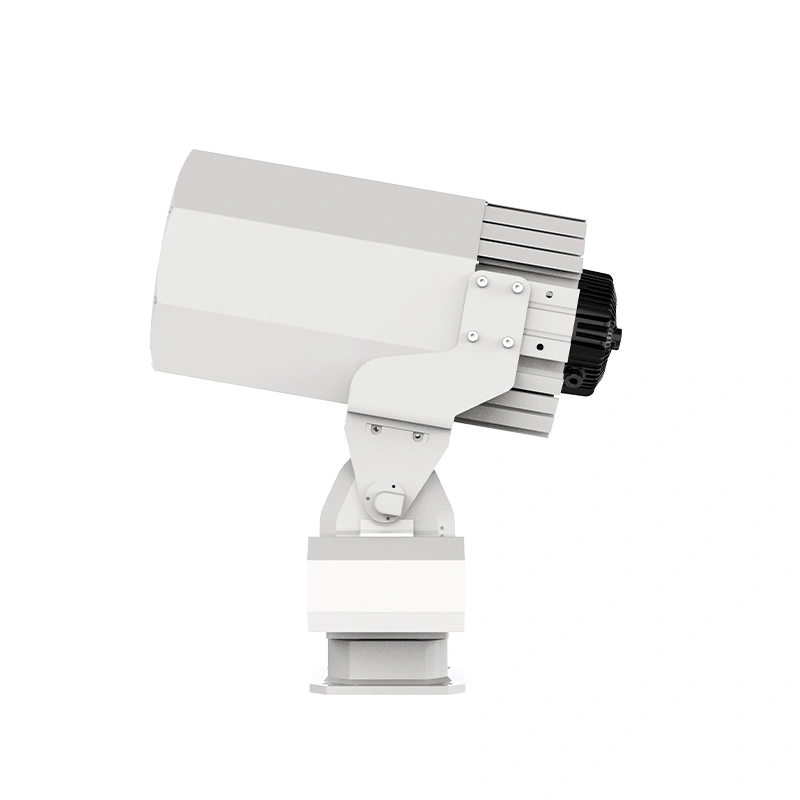

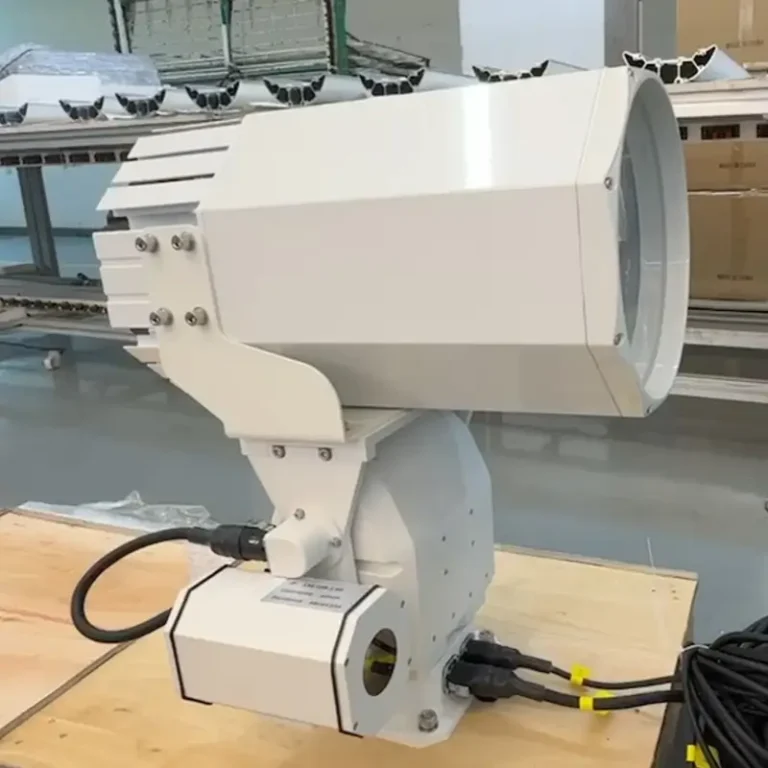

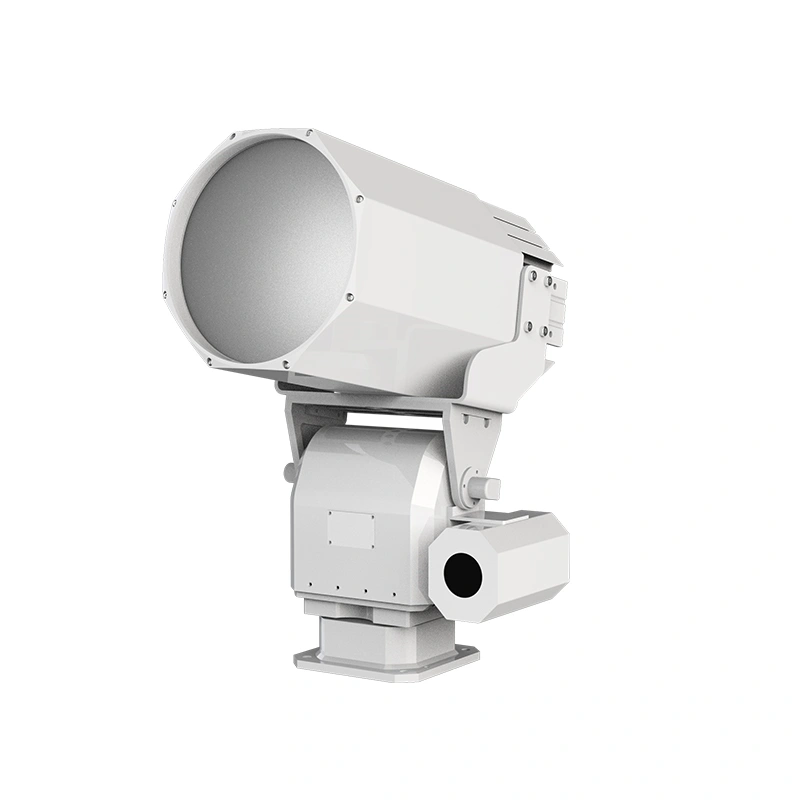

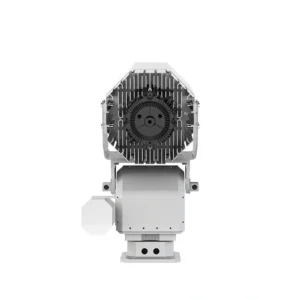

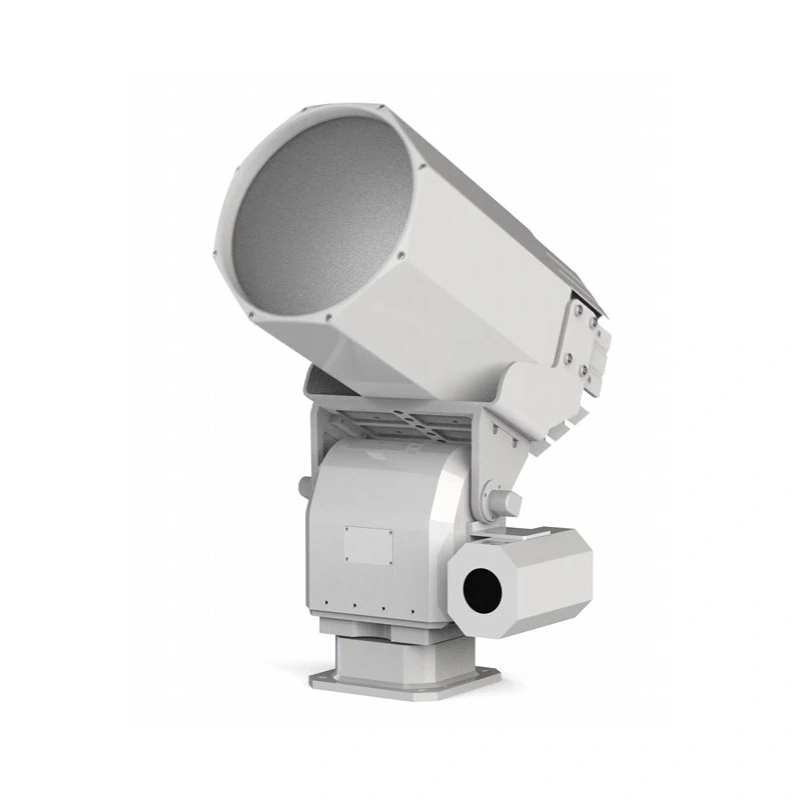

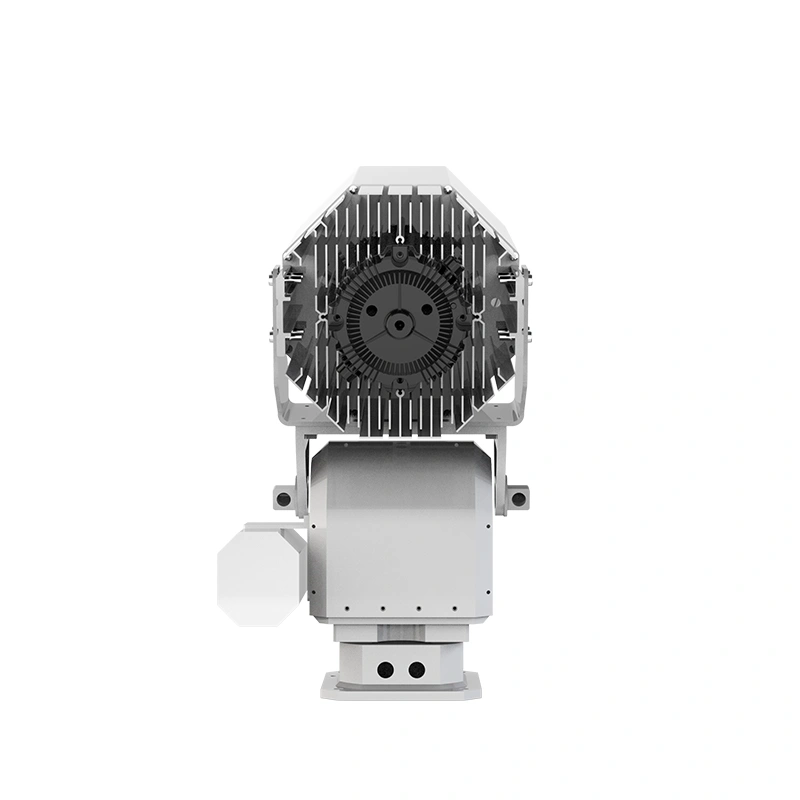

240W LED Long-Range Marine Searchlight with Built-in Camera

Features:

Protection level: IP66 rated
Power: 240W available
Illumination range: T3L ≥ 1000 m (at 1 LUX), T3H ≥ 2000 m (at 1 LUX)
Beam angle: 3.5–4.5° / 1.8–2.5°
Rotation: Slip-rings allow seamless 360° horizontal rotation without fixed stop positions
Home-return function: Automatically returns to the preset home position
Programmable auto-scan: User-configurable automatic scanning available
Speed control: Smooth proportional-speed adjustment
Operating temperature range: Certified for operation from –40 °C up to +55 °C
Build quality: Constructed with marine-grade aluminum and stainless steel, finished with salt-resistant powder coating
Energy efficient: LEDs consume at least 75% less power than halogen lamps
Long service life: LED lifespan spans tens of thousands of hours — far longer than typical halogen lamps (about 1,000–2,000 hours), which means lower maintenance and replacement costs and higher reliability

SEND INQUIRY

DATE SHEET

Share 0

Post 0

Description

The TUBU LED Marine Searchlights are designed to meet the needs of high-intensity operations across sectors such as national defense, marine navigation, military deployment, water conservancy projects, offshore oil platforms, port terminals, large naval vessels, and maritime search-and-rescue.

With an IP66 rating, 240W power output, and selectable beam angles of 3.5–4.5° or 1.8–2.5°, they provide exceptional long-distance illumination, reaching up to 2000m or 4000m to enhance visibility in mission-critical conditions.

Equipped with slip-ring technology for uninterrupted 360° horizontal rotation, these units deliver smooth and continuous directional control.

Features such as customizable auto-scan modes, intelligent auto-return positioning, and proportional-speed control ensure precise, responsive, and operator-friendly performance.

Constructed from marine-grade aluminum and stainless steel and finished with a corrosion-resistant powder coating, the searchlights are built to withstand harsh salt spray and marine environments.

Optional cloud-based control expands their capabilities further, offering up to 200 preset positions, ±0.1° positioning precision, compatibility with ONVIF/GB28181, and RS-485 communication for integration with advanced monitoring and security networks.

With low energy consumption, an LED service life exceeding 50,000 hours, and significantly higher reliability compared to halogen alternatives, TUBU searchlights provide dependable, long-term performance suited for demanding maritime and defense applications.

Tech Specs

Model		TBSL-T3L-240E-BSX	TBSL-T3H-240E-BSX
Light Information	Light Source	LED	LED
	Power Consumption	240W	240W
	Color Temperature	4500K	4500K
	Input Voltage	AC220V (50/60Hz)
	Working Temperature	-40°C ~ +55°C
	IP Rating	IP66
	Lifespan	>50,000 hours
	Beam Angle	3.5-4.5°	1.8-2.5°
	Beam Distance	≥1000m(1LUX), ≥2000m(0.25LUX)	≥2000m(1LUX), ≥4000m(0.25LUX)
	Housing Material	1070 Pure aluminum cold forging, with salt-resistant, scratch-resistant white powder coat finish
	Packing Size(mm)	600500800mm
	Weight	40Kg
Cloud Platform (Optional)	Adjustable Speed	Horizontal: 1°～20°S, vertical 1°～5°/S
	Adjustable Angle	Horizontal: 0～360°, vertical +35°～-35°, or customizable
	Preset Position	200pcs
	Repeated Positioning Accuracy	±0.1°
	Communication Protocol	Protocols:ONVIF, GB/T28181 compliance
	Communication Baud Bate	2400/4800/9600/19200bps(optional)
	Communication Interface	RS485
	Power	60W

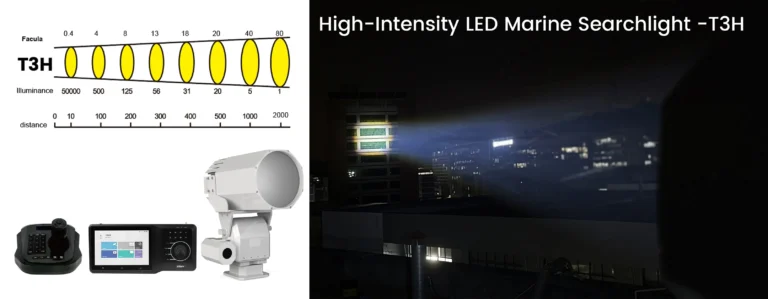

Best Ultra-Long Illumination Range LED Marine Searchlight

Delivering an ultra-long illumination range, the TUBU LED Marine Searchlight achieves ≥2000 m at 1 lux and up to ≥4000 m at 0.25 lux, far surpassing conventional marine lighting.

Its exceptional distance performance ensures clear visibility for national defense missions, maritime search-and-rescue, offshore operations, and navigation of large vessels, where long-range clarity is critical.

T3H-Camera-LED-marine-searchlights-vs.-Halogen-Searchlights

T3H Camera LED Marine Searchlights vs. SEEMATZ Searchlights

The SEEMATZ searchlight relies on a bulky, traditional halogen-style design with a large housing, glass lens, and deep reflector structure. Although mounted on a heavy-duty base for stability, its beam disperses quickly and loses brightness over distance, making long-range navigation and nighttime search tasks less effective.

The TUBU camera-integrated LED marine searchlight represents a new generation of performance and efficiency. Its compact, modern body, crafted from cold-forged 1070 pure aluminum with a durable white powder coat finish, houses an HD camera with full 360° viewing, superior protection, and intelligent monitoring features.

In real-world video comparisons, the difference is striking:

While the SEEMATZ beam fades rapidly at long distances, the TUBU T3H produces an exceptionally focused, ultra-long-range beam that stays bright and clear even at 2 km. Its powerful penetration cuts through darkness, fog, and atmospheric interference, delivering crisp target visibility when it matters most.

Smaller, lighter, more efficient, and dramatically brighter, the TUBU LED searchlight empowers vessels to identify distant hazards faster, navigate with greater confidence, and enhance safety during defense missions, offshore operations, and emergency search-and-rescue.

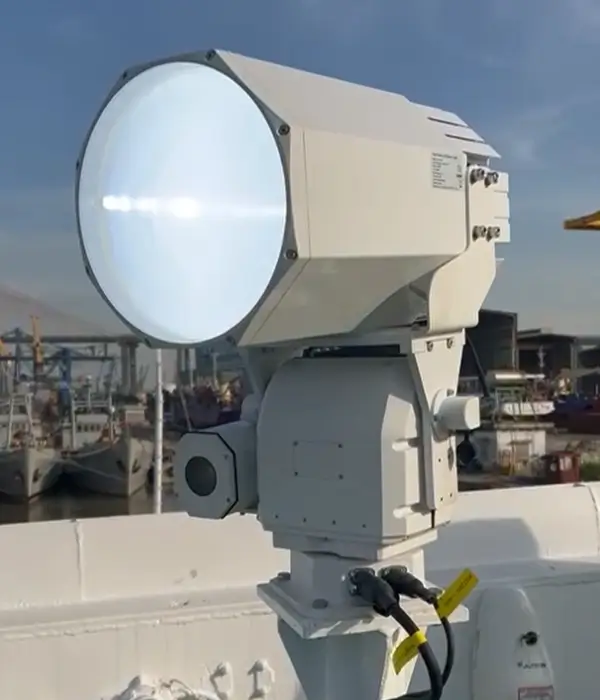

Integrated Visual System

Built with a 5MP camera module and enhanced by 30× optical and 16× digital zoom, the system delivers powerful visual performance. An optional touch-enabled controller is available to provide smoother and more flexible control.

Cloud-Based Control Platform for Advanced System Integration

The optional cloud-control module enhances system connectivity with features including:

Up to 200 programmable preset points
±0.1° high-precision positioning
Compliance with ONVIF and GB/T28181 standards
RS485 communication support

Designed for seamless linkage with maritime monitoring networks, security infrastructures, and remote command hubs, this platform is well-suited for naval applications, offshore facilities, and large-vessel operations.

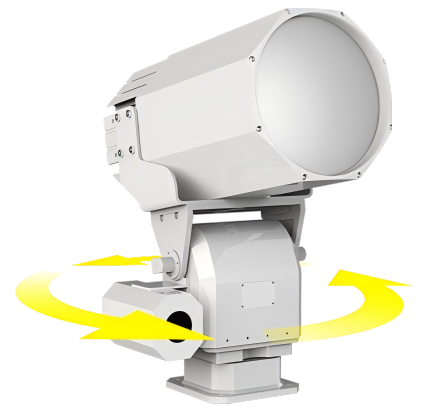

Advanced 360° Precision Motion System

Built with high-end slip-ring architecture, the unit achieves uninterrupted full-circle rotation, delivering ultra-smooth movement and pinpoint directional control even during rapid adjustments.

Its smart motion features—including automatic homing and customizable scan routes—enable hands-free area sweeps, continuous surveillance, and reliable long-distance target acquisition, dramatically reducing operator workload.

Ultra-Focused Beam for Superior Long-Range Detection

With an ultra-narrow 1.8–2.5° beam (or 3.5–4.5° depending on model), the searchlight produces a concentrated, high-intensity output at 4500–6000K.

This tightly controlled beam punches through fog, rain, and low-visibility conditions, delivering exceptional clarity for long-distance recognition—ideal for demanding maritime operations and mission-critical scenarios.

Built Tough for the Harshest Marine Environments

Engineered from cold-forged 1070 pure aluminum combined with stainless-steel components, this searchlight features a durable powder-coat finish designed to resist salt corrosion and surface abrasion.

With dependable performance across extreme temperatures from –40°C to +55°C, it is purpose-built for demanding conditions.

High-Efficiency LED Performance with Exceptional Service Life

Designed for maximum efficiency, TUBU’s LED system uses over 75% less power than traditional halogen or xenon lamps while delivering superior output.

Its extended lifespan, exceeding 50,000 hours versus the typical 1,000–2,000 hours of conventional lighting, dramatically reduces maintenance demands and operational interruptions.

This level of long-term reliability is essential for defense fleets, offshore installations, and vessels operating in remote or high-risk environments.

240W LED Long-Range Marine Searchlight with Built-in Camera

Applications

With advanced intelligent optical technology and powerful long-range illumination, TUBU marine searchlights are engineered to meet the demanding requirements of naval fleets, maritime enforcement, offshore oil and gas platforms, and open-sea search-and-rescue operations. They deliver a dependable lighting solution for professional maritime environments.
