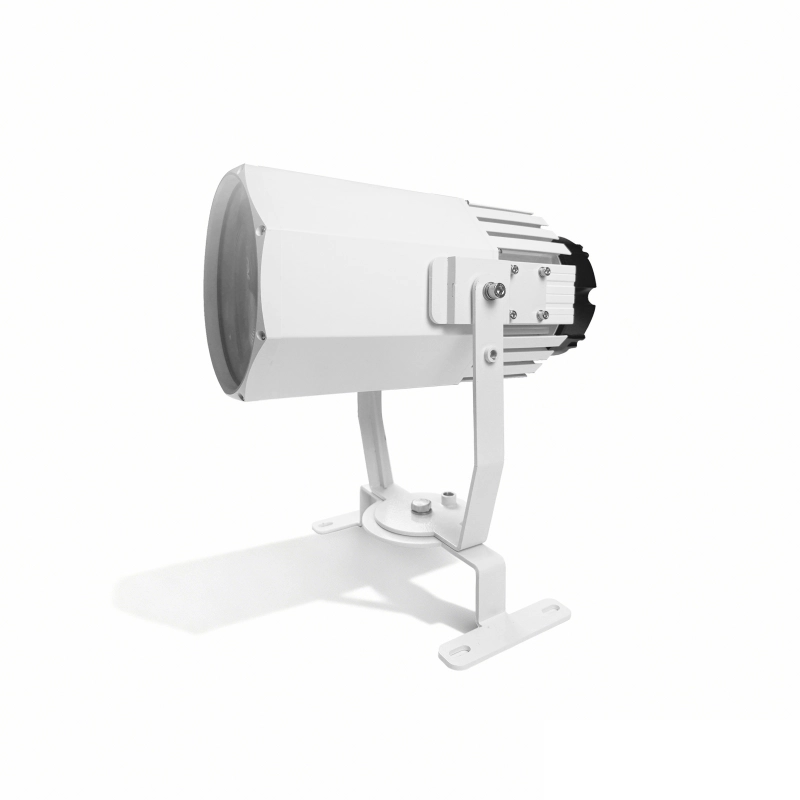

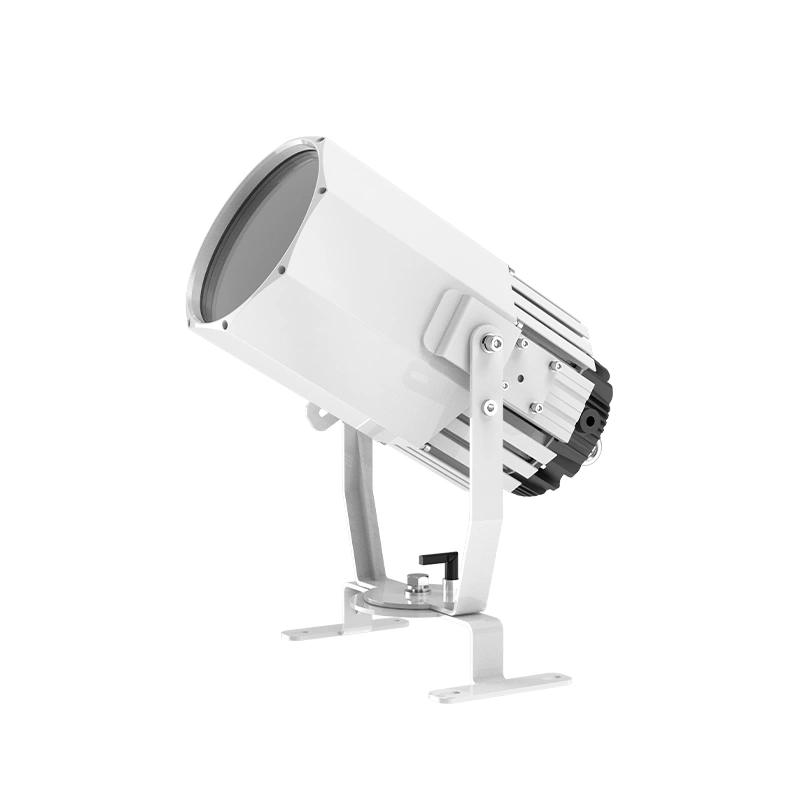

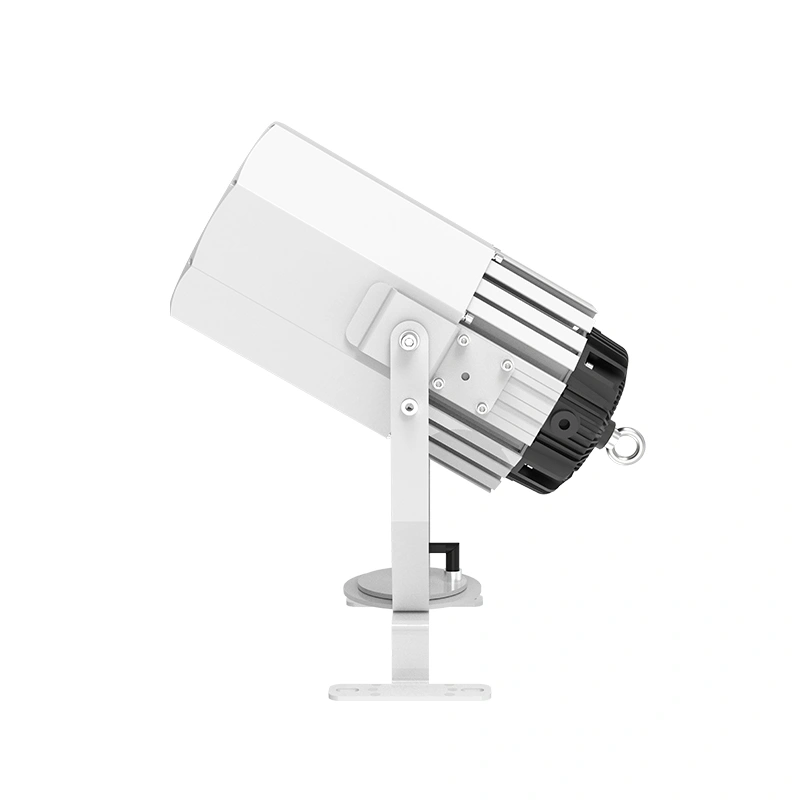

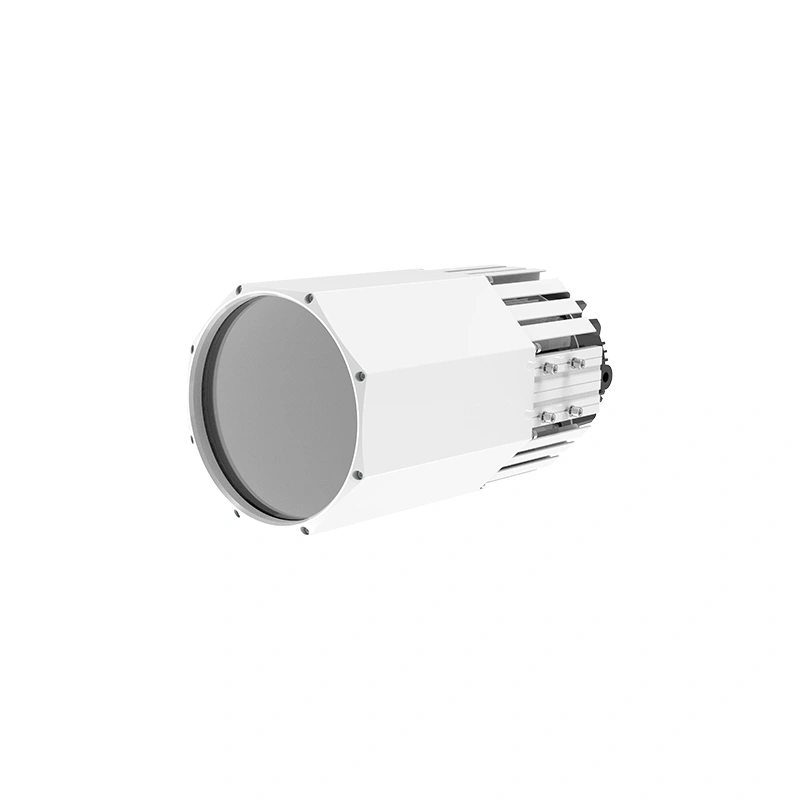

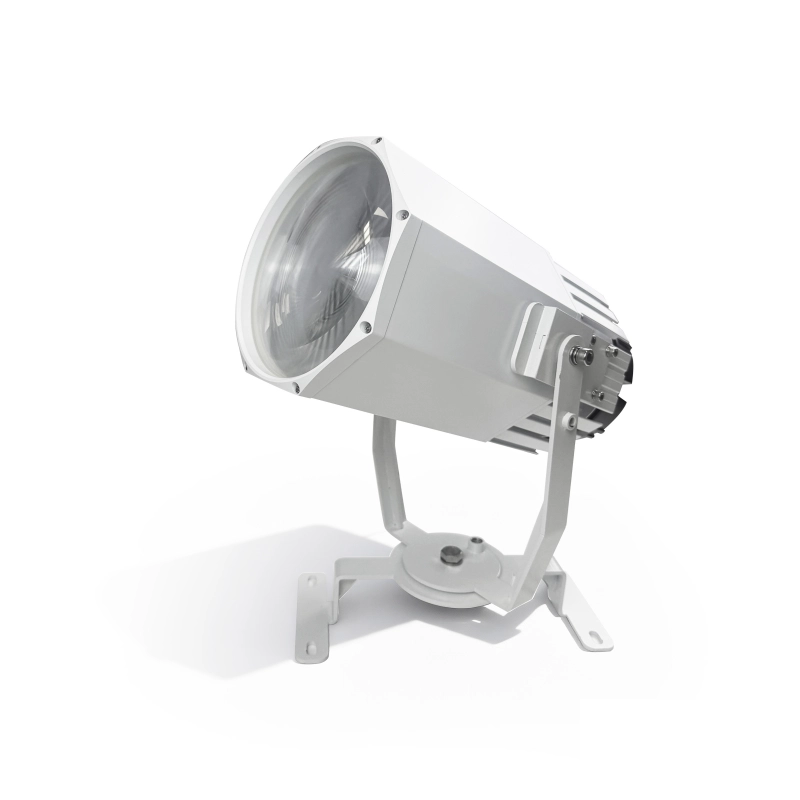

Manual Bracket LED Marine Searchlight

Features:

Protection class: IP66
Irradiation distance: min 300m (1LUX) - max exceeds 2000m (1LUX)
Beam angle: 2.5° - 8°
Rotate 360° horizontally
Auto-return to home position
Auto-scan with user programmability
Power Consumption: 160W - 240W
Approved for temperatures down to -40°C and up to +55°C
Materials: 1070 Pure aluminum cold forging, with salt-resistant, scratch-resistant white powder coat finish
Lower power consumption: LEDs consume 75% or more or less power than Halogen lamps
Longer life: With a lifespan of over 50,000 hours, compared to the typical 1,000–2,000 hours of typical halogen lamps, it significantly reduces replacement costs and enhances overall reliability.

SEND INQUIRY

DATE SHEET

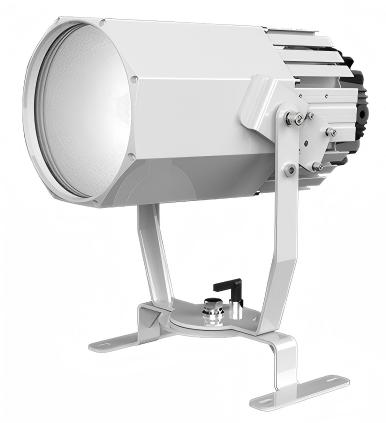

Description

The TUBU Manual Bracket LED Marine Searchlight is built for mission-critical visibility in harsh maritime environments. 1070 Pure aluminum cold forging, with salt-resistant, scratch-resistant white powder coat finish, protected by an IP66.

Across multiple model options, the searchlight delivers focused beam distances ranging from 300 m to 2000 m (1 LUX), with precise beam angles between 2.5° and 8°. Advanced proportional-speed control allows operators to make smooth, fine-tuned adjustments for reliable on-deck targeting.

Continuous 360° horizontal rotation is enabled through slip-ring technology, while auto-scan modes, user-defined sweep patterns, and automatic home-position return provide added operational efficiency.

Engineered for extreme climates from −40°C to +55°C, the system combines high-output LEDs with more than 75% energy savings compared to halogen lighting. With an extended service life of up to 50,000 hours, the fixture minimizes maintenance demands for long-term maritime deployment.

Available in 160W–240W models with AC or DC power input, the TUBU Manual LED Marine Searchlight offers dependable, long-range, precision illumination for vessels operating in the world’s most challenging marine conditions.

Tech Specs

Model		TBSL-T2L/H-160E-C	TBSL-T3L/H-240E-C
Light Information	Light Source	LED	LED
	Power Consumption	160W	240W
	Color Temperature	6500K
	Input Voltage	AC 220V-240V 50/60Hz / DC12V
	Working Temperature	-40℃～+55℃
	IP Rating	IP66
	Lifespan	>50,000 hours
	Beam Angle	8°/3°	3.5°/2.5°
	Beam Distance	≥300m (1LUX)/≥800m (1LUX)	≥1000m (1LUX)/≥2000m (1LUX)
	Housing Material	1070 Pure aluminum cold forging, with salt-resistant, scratch-resistant white powder coat finish
	Packing Size(mm)	600500400mm	700500500mm
	Weight	12Kg	23Kg
	Adjustable Angle	Horizontal: 0~360°, Vertical: +30°～-30°

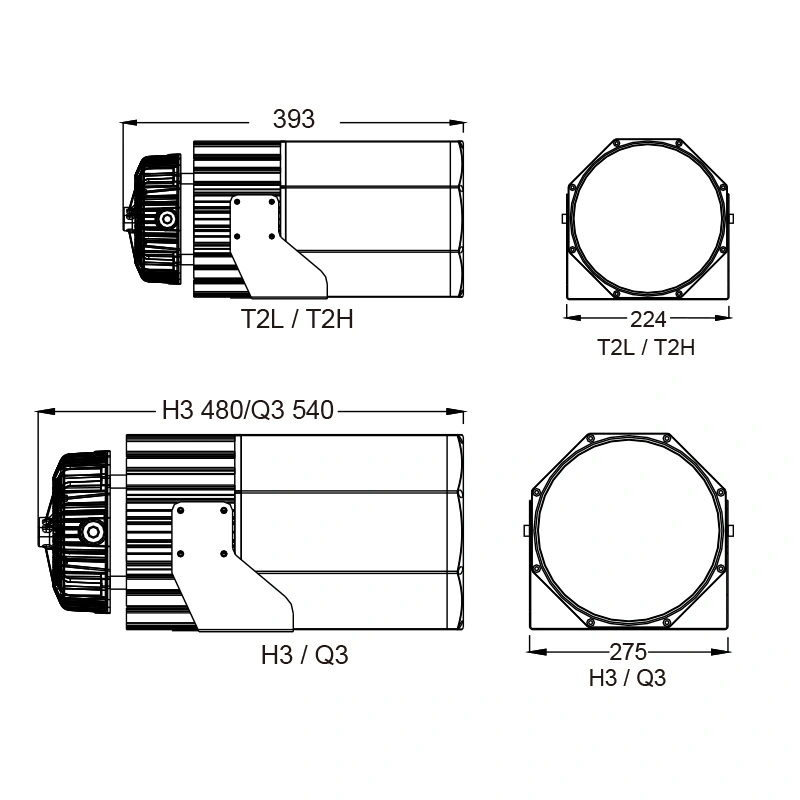

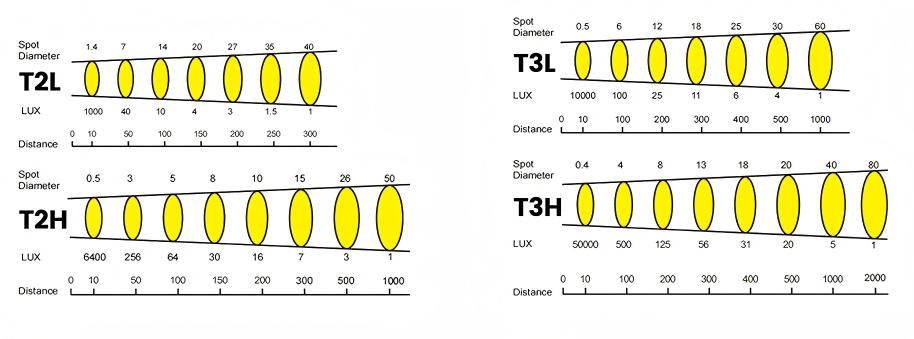

Multiple Models for a Wide Range of Marine Applications

The TUBU Manual-Bracket LED Marine Searchlight is available in multiple models to meet diverse operational requirements across various maritime missions.

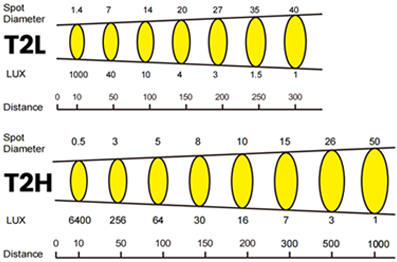

The TBSL-T2 features 8° and 3° beam angles, delivering illumination distances of 300 m (1 lux) and 800 m (1 lux). This configuration provides both wide-area near-field coverage and focused mid-range illumination, making it ideal for routine inspections and reliable target spotting.

The TBSL-T3 offers narrower 3.5° and 2.5° beam angles, extending illumination performance to 1000 m (1 lux) and 2000 m (1 lux). The tighter beam concentration delivers stronger penetration and long-distance focus, enabling clear target identification even in harsh weather and challenging sea conditions.

These beam configurations ensure optimal lighting performance for both close-range operations and ultra-long-range detection tasks.

Ultra-Low Power Consumption

TUBU manual-bracket LED marine searchlights consume only 160W–240W. Compared to halogen lamps delivering similar performance, typically 500W to 1000W, they reduce power consumption by 75% or more. This significantly lowers the vessel’s energy load and improves overall operational efficiency.

Longer Lifespan, Less Maintenance

The TUBU manual-bracket LED marine searchlight delivers an impressive lifespan of up to 50,000 hours, far exceeding the 1,000–2,000 hours typical of traditional halogen lamps.

This extended longevity significantly reduces maintenance and replacement frequency, lowers associated costs, and minimizes the risk of operational downtime caused by frequent servicing. As a result, the searchlight remains dependable and mission-ready for continuous maritime operations.

IP66 Marine-Grade Protection for Reduced Failures

Constructed from cold-forged 1070 pure aluminum and finished with a salt-resistant, scratch-proof white powder coating, this searchlight achieves IP66 marine-grade protection, built to withstand heavy waves, salt spray, and extreme weather conditions.

Its robust durability significantly reduces environment-induced damage and operational failures, lowering overall risk while minimizing maintenance and replacement costs.

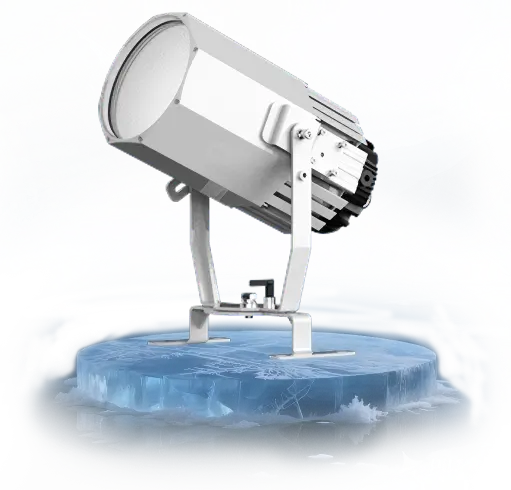

Wide Operating Temperature Range

This searchlight is engineered to operate reliably in ambient temperatures ranging from -40°C to +55°C, making it well-suited for the significant temperature variations encountered across different maritime regions. Its wide operating temperature range supports a broad spectrum of marine applications, ensuring dependable and continuous illumination for vessels operating across diverse environments.

Applications

The Manual LED Marine Searchlight is engineered for high-performance use across a wide range of maritime, industrial, and defense environments. With long-range illumination, durable marine-grade construction, and reliable all-weather performance, this LED marine searchlight is ideal for the following applications:

Defense & Military Operations: Delivers powerful, focused long-range lighting for surveillance, coastal patrol, threat detection, and nighttime mission support on naval and defense vessels.

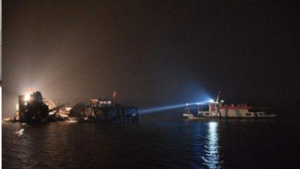

Marine Navigation & Offshore Operations: Enhances long-distance visibility for commercial ships, fishing vessels, offshore rigs, and open-sea navigation—providing critical illumination in fog, rain, and rough weather.
Water Conservation & Infrastructure Inspection: Offers clear, high-output lighting for nighttime inspections of dams, reservoirs, waterways, and hydrological structures, improving accuracy and safety during field assessments.
Expeditions, Oilfields & Harsh Industrial Environments: Designed for reliability in remote expeditions, oil and gas fields, mining zones, and heavy industrial sites where robust long-throw lighting is essential.
Ports, Wharfs & Harbor Security: Improves visibility for docking operations, cargo handling, perimeter monitoring, and harbor-side security in low-light or adverse weather conditions.
Large Warships & Patrol Vessels: Provides extended beam distance for wide-area scanning, lookout duties, and nighttime navigation on naval ships and large maritime vessels.

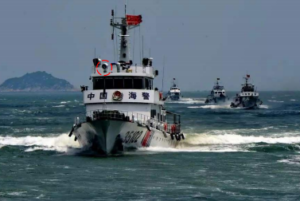

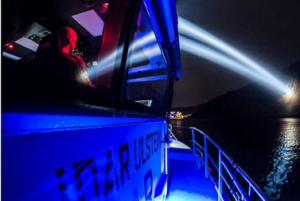

Maritime Search and Rescue (SAR): Generates high-intensity, long-throw illumination to support rapid detection of persons, vessels, and hazards during emergency marine rescue missions.
